TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362AX

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362AX

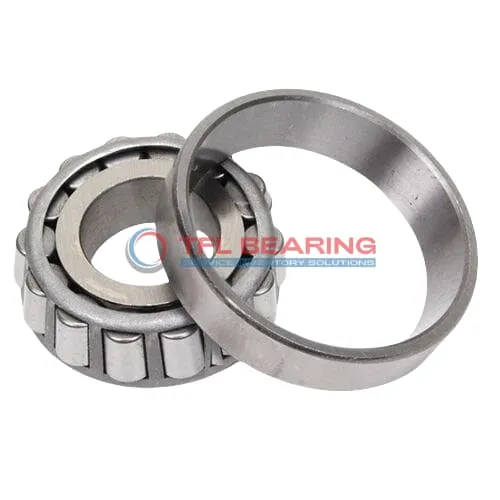

The 365A-362AX is a single-row tapered roller bearing with a 1.625″ bore and 3.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A-362AX
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.5" x 0.9375"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7751"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365A
  • Cup Part Number 362AX
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

Performance Features of 365A-362AX Bearing

365A-362AX Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.

The steel cage maintains roller alignment, ensuring smooth operation and reducing wear.
With a standard radial clearance, it provides reliable performance in various conditions.

365A-362AX Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design enhances load distribution, extending service life.

The open seal type allows for easy lubrication, maintaining optimal performance.
Weighing 1.500 lb, it balances durability and practicality for industrial use.

Application

Industrial Uses of 365A-362AX Bearing
365A-362AX Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 365A-362AX Bearing a Preferred Choice?
In automotive applications, 365A-362AX Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 365A-362AX Bearing
For industrial conveyor systems, 365A-362AX Bearing provides reliable performance under continuous radial and thrust loads. Its steel cage adds strength, making it suitable for high-stress operations.

Automotive vs Aerospace: Applications of 365A-362AX Bearing
While 365A-362AX Bearing excels in truck axles and heavy vehicles, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of 365A-362AX Bearing
In mining equipment, 365A-362AX Bearing withstands harsh conditions due to its robust chrome steel rollers. The standard radial clearance option makes it versatile for various load requirements.
