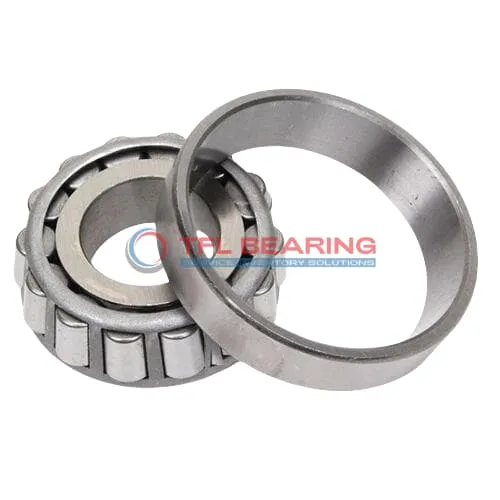

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362AC

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362AC

The 365A-362AC is a single-row tapered roller bearing with a 1.625″ bore and 3.7402″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust-wise, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for automotive or industrial uses where combined radial and thrust loads are present.

Weighing 1.6 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A-362AC
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.7402" x 0.8125"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.7402"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6501"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.31"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365A
  • Cup Part Number 362AC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.6 lb

Features

Performance Features of 365A-362AC Bearing

365A-362AC Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides flexibility for various applications.

How Is 365A-362AC Bearing Engineered for Reliability?

365A-362AC Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction ensures durability, even in high-stress environments.
Its effective centre location of -0.17″ enhances stability during operation.
This design makes it suitable for applications requiring consistent performance.

Built for Durability: 365A-362AC Bearing

365A-362AC Bearing withstands temperatures from -30° to 110°C, maintaining performance in varied conditions.
The open seal type allows for easy lubrication, ensuring smooth operation over time.
With a static radial load capacity of 21,500 lbf, it handles heavy loads reliably.
Its ABEC-1 rating confirms precision manufacturing for consistent quality.

Application

Industrial Uses of 365A-362AC Bearing
365A-362AC Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding conditions.

In automotive applications, 365A-362AC Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 365A-362AC Bearing’s open design allows for easy lubrication, extending its service life in high-use environments. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 365A-362AC Bearing Used?
You’ll often find 365A-362AC Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy stress.

In manufacturing plants, 365A-362AC Bearing supports machinery like presses and rollers, thanks to its robust design. The ABEC-1 rating provides a good balance of precision and affordability for industrial applications.

Built for Heavy-Duty Use: 365A-362AC Bearing
365A-362AC Bearing excels in applications like forklifts and cranes, where its tapered rollers manage both radial and axial forces. The chrome steel rollers and rings offer excellent wear resistance.

For power transmission systems, 365A-362AC Bearing’s dynamic load capacity ensures reliable performance. The steel cage keeps everything in place, even during high-speed operations.

Automotive vs Aerospace: Applications of 365A-362AC Bearing
In automotive settings, 365A-362AC Bearing is ideal for drivetrain components, where its combined load capacity shines. The imperial measurements make it a practical choice for many vehicle designs.

For aerospace ground equipment, 365A-362AC Bearing provides dependable performance in load-handling systems. Its temperature range suits various operational environments.
