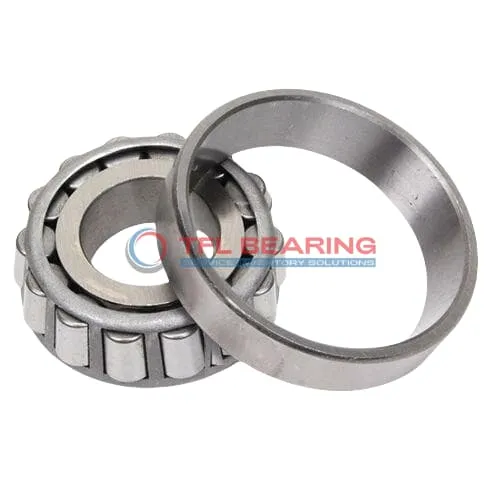

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362A

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362A

The 365A-362A is a single-row tapered roller bearing with a 1.625″ bore and 3.5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.400 lb, it offers a balance of strength and reliability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A-362A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.5" x 0.8125"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6501"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365A
  • Cup Part Number 362A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

Performance Features of 365A-362A Bearing

365A-362A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 365A-362A Bearing Engineered for Reliability?

365A-362A Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 3,250 lbf at 90 million revolutions highlights its long-lasting performance.
The open design allows for easy lubrication, maintaining efficiency over time.

Designed for Durability: 365A-362A Bearing

365A-362A Bearing’s tapered roller design efficiently manages combined loads, making it versatile for various applications.
The chrome steel components resist wear, ensuring a longer operational life even under heavy stress.
With an ABEC-1 rating, it balances precision and affordability for industrial use.
Its standard radial clearance option allows for flexibility in different operating conditions.

Application

Industrial Uses of 365A-362A Bearing
365A-362A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding conditions.

What Makes 365A-362A Bearing a Preferred Choice?
In automotive applications, 365A-362A Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and robust load capacity. Its open design simplifies lubrication, extending service life.

Built for Heavy-Duty Use: 365A-362A Bearing
For industrial conveyors, 365A-362A Bearing provides reliable performance, with its steel cage offering stability under continuous operation. The standard radial clearance makes it versatile for various setups.

Automotive vs Aerospace: Applications of 365A-362A Bearing
While 365A-362A Bearing excels in truck axles and off-road vehicles, its precision also suits aerospace components like landing gear systems. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 365A-362A Bearing
In automated production lines, 365A-362A Bearing supports robotic arms and assembly units, where its combined load capability and temperature tolerance are key. The steel rollers reduce friction for smoother motion.
