TS (Single Row Tapered Roller Bearings) (Imperial) 3583-3525

TS (Single Row Tapered Roller Bearings) (Imperial) 3583-3525

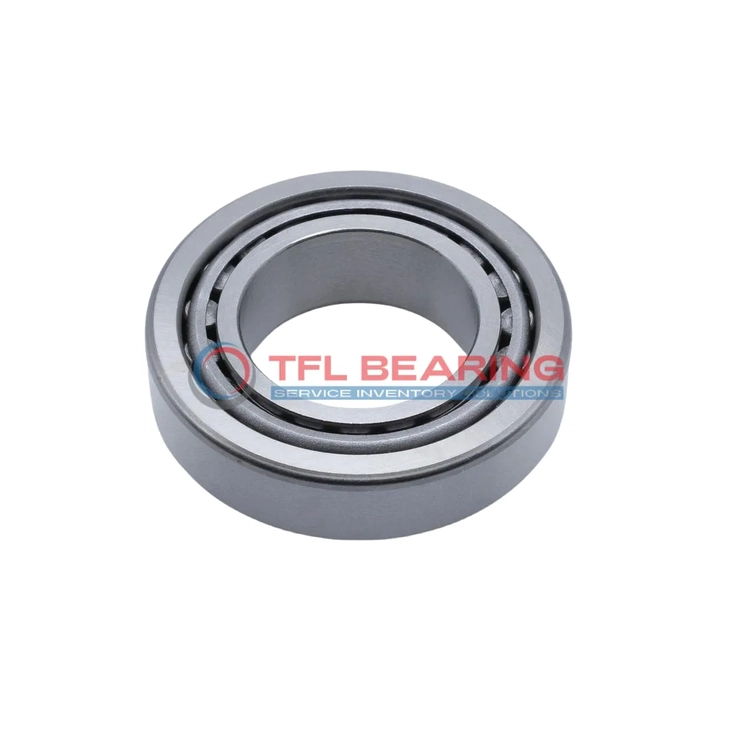

The 3583-3525 is a single-row tapered roller bearing with a 1.5″ bore and 3.4375″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 25500 lbf radially and 3460 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 1.9 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3583-3525
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 3.4375" x 1.1875"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.216"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.79"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.23"
  • Cup Backface Backing Diameter 2.95"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3583
  • Cup Part Number 3525
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 25500 lbf
  • Static Radial Load 30100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6610 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.900 lb

Features

How Is 3583-3525 Bearing Engineered for Reliability?

3583-3525 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 25,500 lbf, making it suitable for heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Why Choose 3583-3525 Bearing for Precision Tasks?

3583-3525 Bearing’s tapered roller design provides precise load distribution, enhancing performance in combined load scenarios.
The chrome steel construction offers excellent wear resistance, ensuring consistent operation over time.
Its standard radial clearance options allow for flexibility in different applications.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.

Structural Advantages of 3583-3525 Bearing

3583-3525 Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The precise cone and cup width tolerances ensure proper fit and alignment in assemblies.
Its effective center location of -0.4″ optimises load distribution across the rollers.
The open design allows for easy lubrication, supporting long-term performance.

Application

Industrial Uses of 3583-3525 Bearing
3583-3525 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 3583-3525 Bearing a Preferred Choice?
In automotive applications, 3583-3525 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 3583-3525 Bearing
For industrial fans and pumps, 3583-3525 Bearing offers reliable performance with its standard radial clearance. The steel cage provides stability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 3583-3525 Bearing
While 3583-3525 Bearing excels in automotive drivetrains, its ABEC-1 rating also makes it a practical choice for aerospace auxiliary systems. The temperature range ensures performance in varied conditions.

Essential Roles of 3583-3525 Bearing
In conveyor systems, 3583-3525 Bearing’s dynamic radial load capacity keeps operations smooth. Its compatibility with Timken models adds versatility for maintenance and replacements.
