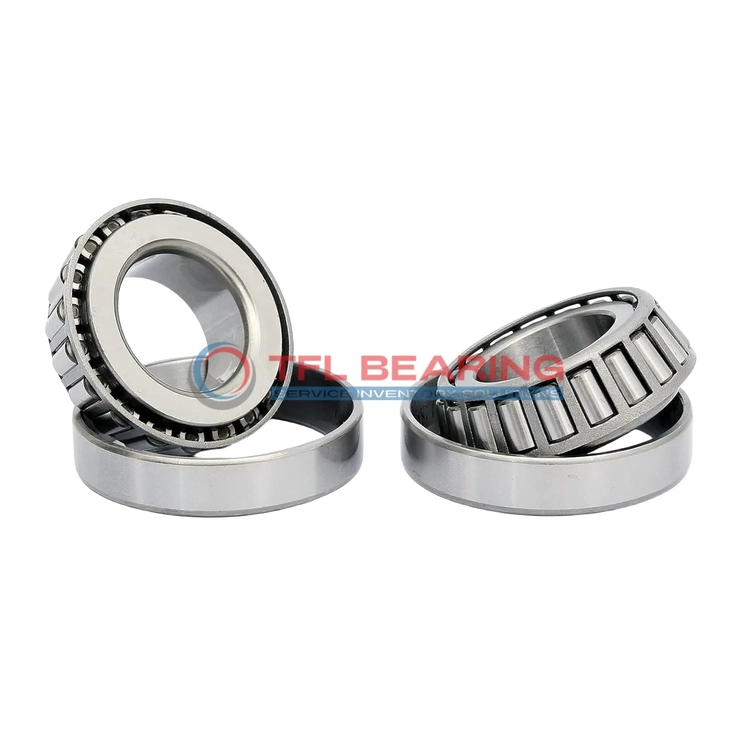

TS (Single Row Tapered Roller Bearings) (Imperial) 334-V333AS

TS (Single Row Tapered Roller Bearings) (Imperial) 334-V333AS

The 334-V333AS is a single-row tapered roller bearing with a 1.1875″ bore and 3.1496″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17900 lbf radially and 2170 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments.

The standard radial clearance ensures easy installation, with options for C3, C4, or C5 available. Its ABEC-1 rating balances precision and cost-effectiveness for general use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 334-V333AS
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1875" x 3.1496" x 0.8268"
  • Bore Dia 1.1875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.1496"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.882"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8268"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8268"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.5"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 3.03"
  • Cup Backface Backing Diameter 2.87"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.25"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 334
  • Cup Part Number V333AS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 335
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17900 lbf
  • Static Radial Load 18700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4640 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.3 lb

Features

Performance Features of 334-V333AS Bearing

334-V333AS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 17900 lbf, ensuring dependable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

How Is 334-V333AS Bearing Engineered for Reliability?

334-V333AS Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its effective centre location of -0.25″ ensures precise alignment in assembly.
This design makes it suitable for applications requiring consistent performance under stress.

Built for Durability: 334-V333AS Bearing

334-V333AS Bearing’s chrome steel components resist wear, even under heavy dynamic loads up to 17900 lbf.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With a static radial load capacity of 18700 lbf, it excels in demanding environments.
Its open seal type allows for easy lubrication, maintaining optimal performance over time.

Steel vs Ceramic Bearings: Strengths of 334-V333AS Bearing

334-V333AS Bearing uses high-quality chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
Unlike ceramic options, this steel construction provides reliable performance in standard industrial applications.
The bearing’s ABEC-1 rating ensures consistent precision for most general-purpose uses.
Its compatibility with Timken models makes it a practical choice for replacements or upgrades.

Why Choose 334-V333AS Bearing for Precision Tasks?

334-V333AS Bearing offers precise load handling with its tapered roller design and chrome steel components.
The standard radial clearance provides smooth rotation, essential for precision applications.
With dynamic thrust rating of 2170 lbf, it maintains accuracy under various load conditions.
Its 1.3 lb weight makes it manageable while still providing robust performance.

Application

Industrial Uses of 334-V333AS Bearing
334-V333AS Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

What Makes 334-V333AS Bearing a Preferred Choice?
In automotive applications, 334-V333AS Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. The steel cage adds robustness for long-term performance.

Built for Heavy-Duty Use: 334-V333AS Bearing
For industrial conveyors, 334-V333AS Bearing’s open design simplifies lubrication and maintenance. Its standard radial clearance makes it adaptable to varying load conditions without compromising stability.

Automotive vs Aerospace: Applications of 334-V333AS Bearing
While 334-V333AS Bearing excels in truck axles due to its high dynamic radial load capacity, it’s also suitable for aerospace ground support equipment where reliability is key. The ABEC-1 rating balances precision and cost-effectiveness.

Perfect Fit for Automation: 334-V333AS Bearing
In robotic arms, 334-V333AS Bearing’s tapered rollers provide smooth motion control under combined loads. The temperature range of -30° to 110°C ensures consistent operation in diverse climates.
