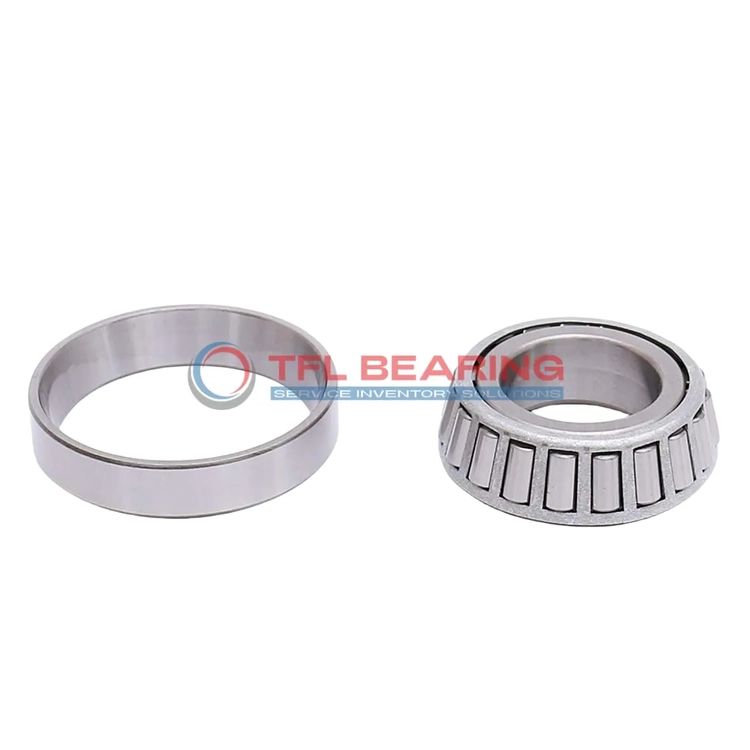

TS (Single Row Tapered Roller Bearings) (Imperial) 3197-3120

TS (Single Row Tapered Roller Bearings) (Imperial) 3197-3120

The 3197-3120 is a single-row tapered roller bearing with a 1.3125″ bore and 2.8593″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 21300 lbf radially and 3140 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance under heavy loads. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 1.2 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3197-3120
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.8593" x 1.1875"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8593"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.181"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.59"
  • Cone Backface Backing Diameter 1.63"
  • Cup Frontface Backing Diameter 2.68"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3197
  • Cup Part Number 3120
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3100
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21300 lbf
  • Static Radial Load 22800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5520 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

Performance Features of 3197-3120 Bearing

3197-3120 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 21,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

3197-3120 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance makes it versatile for different industrial needs.

Application

Industrial Uses of 3197-3120 Bearing
3197-3120 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 3197-3120 Bearing Used?
You’ll often find 3197-3120 Bearing in agricultural machinery, supporting gearboxes and axles that require reliable performance under heavy loads. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 3197-3120 Bearing
3197-3120 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 3197-3120 Bearing
In automotive applications, 3197-3120 Bearing supports wheel hubs and transmissions, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The ABEC-1 rating ensures consistent performance.

Essential Roles of 3197-3120 Bearing
3197-3120 Bearing is a go-to choice for conveyor systems in mining, thanks to its ability to handle high radial loads. The standard radial clearance option provides flexibility for different operational needs.
