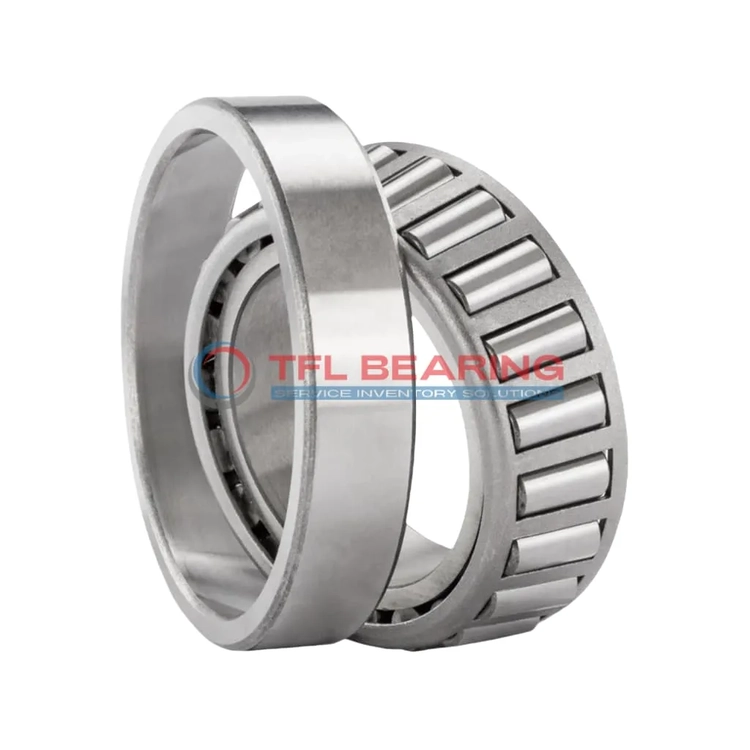

TS (Single Row Tapered Roller Bearings) (Imperial) 29168-29334

TS (Single Row Tapered Roller Bearings) (Imperial) 29168-29334

The 29168-29334 is a single-row tapered roller bearing with a 1.6875″ bore and 3.346″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 14000 lbf radially and 2770 lbf in thrust, with a standard ABEC-1 rating for reliable performance.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 1.1 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it’s a safe choice for most mechanical setups.

The tapered roller design provides effective load distribution, enhancing longevity. Its standard radial clearance can be adjusted to C3, C4, or C5 for specific needs.

Perfect for maintenance tasks or new installations, this bearing is a dependable pick for engineers and repairers alike. Its simple construction ensures straightforward installation and upkeep.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29168-29334
  • Brand TFL
  • Interchangeable Timken
  • Size 1.6875" x 3.346" x 0.748"
  • Bore Dia 1.6875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.346"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.7545"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.748"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.93"
  • Cone Backface Backing Diameter 2.01"
  • Cup Frontface Backing Diameter 3.11"
  • Cup Backface Backing Diameter 2.91"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.05"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29168
  • Cup Part Number 29334
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14000 lbf
  • Static Radial Load 15600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3640 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2770 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

Performance Features of 29168-29334 Bearing

29168-29334 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 14000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 29168-29334 Bearing Engineered for Reliability?

29168-29334 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent strength and resistance to wear.
Its dynamic thrust rating of 2770 lbf ensures consistent performance under demanding conditions.
The standard radial clearance options allow for flexibility in different applications.

Built for Durability: 29168-29334 Bearing

29168-29334 Bearing’s chrome steel components ensure long-lasting performance in tough environments.
The tapered roller design efficiently manages both radial and thrust loads.
With a static radial load capacity of 15600 lbf, it offers reliable support for heavy machinery.
The steel cage maintains roller alignment, contributing to extended service life.

Steel vs Ceramic Bearings: Strengths of 29168-29334 Bearing

29168-29334 Bearing uses chrome steel for both rings and rollers, providing excellent durability.
This material choice ensures cost-effective performance without compromising strength.
The bearing handles dynamic radial loads up to 14000 lbf, suitable for industrial applications.
Its ABEC-1 rating confirms consistent precision in operation.

Application

Key Fields for 29168-29334 Bearing
In industrial settings, 29168-29334 Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 29168-29334 Bearing Used?
You’ll often find 29168-29334 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American and British vehicle models.

Built for Heavy-Duty Use: 29168-29334 Bearing
This bearing works well in agricultural equipment, such as tractors and harvesters, thanks to its robust steel cage and high load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 29168-29334 Bearing
In automotive systems, 29168-29334 Bearing supports high radial and thrust loads in drivetrains. For aerospace, its precision and reliability make it suitable for auxiliary aircraft systems.

Perfect Fit for Automation: 29168-29334 Bearing
In robotic arms and automated assembly lines, 29168-29334 Bearing provides smooth rotation under varying loads. Its standard radial clearance ensures consistent performance in repetitive tasks.
