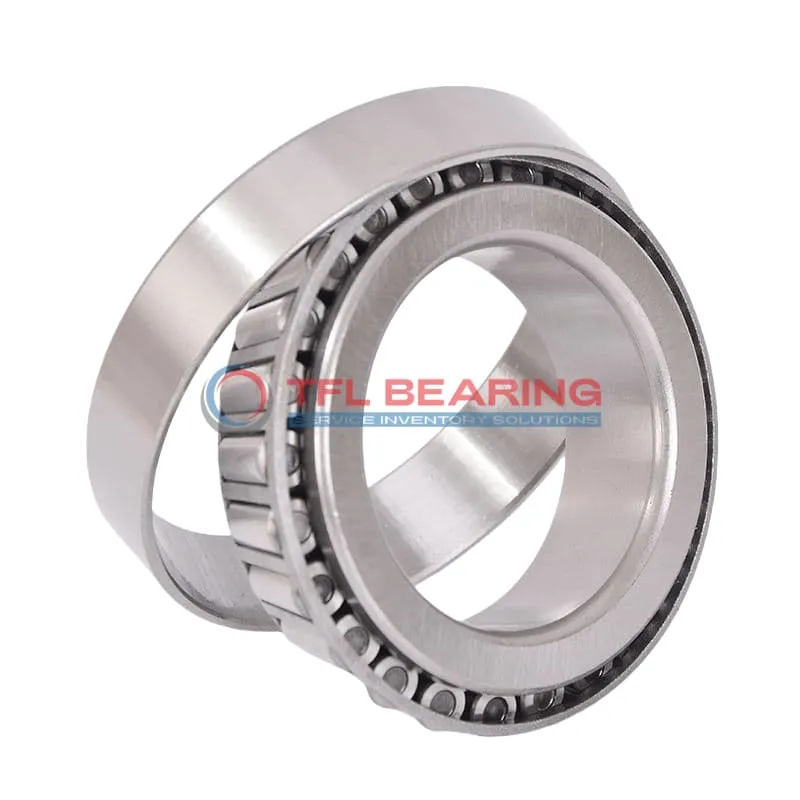

TS (Single Row Tapered Roller Bearings) (Imperial) 2775-2736

TS (Single Row Tapered Roller Bearings) (Imperial) 2775-2736

The 2775-2736 is a single-row tapered roller bearing with a 1.377″ bore and 2.9375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 19500 lbf radially and 2630 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 1.1 lb, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2775-2736
  • Brand TFL
  • Interchangeable Timken
  • Size 1.377" x 2.9375" x 0.9361"
  • Bore Dia 1.377"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.9375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.01"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9361"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.61"
  • Cone Backface Backing Diameter 1.71"
  • Cup Frontface Backing Diameter 2.80"
  • Cup Backface Backing Diameter 2.64"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2775
  • Cup Part Number 2736
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19500 lbf
  • Static Radial Load 23000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2630 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

Performance Features of 2775-2736 Bearing

2775-2736 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 19,500 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Does 2775-2736 Bearing Reduce Friction?

2775-2736 Bearing features a tapered roller design that minimises friction during operation.
The chrome steel construction ensures smooth movement even under heavy radial or thrust loads.
Its standard radial clearance allows for optimal performance without excessive wear.
Regular lubrication further enhances its efficiency and longevity.

Engineered for Precision: 2775-2736 Bearing

2775-2736 Bearing’s single-row construction provides precise load distribution for combined forces.
The ABEC-1 rating ensures consistent performance in applications requiring moderate precision.
Effective centre location at -0.32″ helps maintain alignment in complex assemblies.
This design is ideal for machinery where accuracy and durability are essential.

Steel vs Ceramic Bearings: Strengths of 2775-2736 Bearing

2775-2736 Bearing uses chrome steel for both rollers and rings, balancing strength and cost-effectiveness.
Its dynamic thrust rating of 2,630 lbf makes it suitable for applications with axial loads.
The steel cage offers durability without the brittleness of ceramic alternatives.
With a weight of 1.1 lb, it remains lightweight yet robust for industrial use.

Application

Industrial Uses of 2775-2736 Bearing
The 2775-2736 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 2775-2736 Bearing Used?
You’ll often find 2775-2736 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a straightforward fit for many American and British vehicle models.

Built for Heavy-Duty Use: 2775-2736 Bearing
2775-2736 Bearing excels in industrial settings like conveyor systems, where its open design simplifies lubrication and maintenance. The steel cage adds extra resilience for long-term performance.

Automotive vs Aerospace: Applications of 2775-2736 Bearing
In automotive systems, 2775-2736 Bearing supports high radial loads in drivetrains, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures reliable performance across both sectors.
