TS (Single Row Tapered Roller Bearings) (Imperial) 26132-26334

TS (Single Row Tapered Roller Bearings) (Imperial) 26132-26334

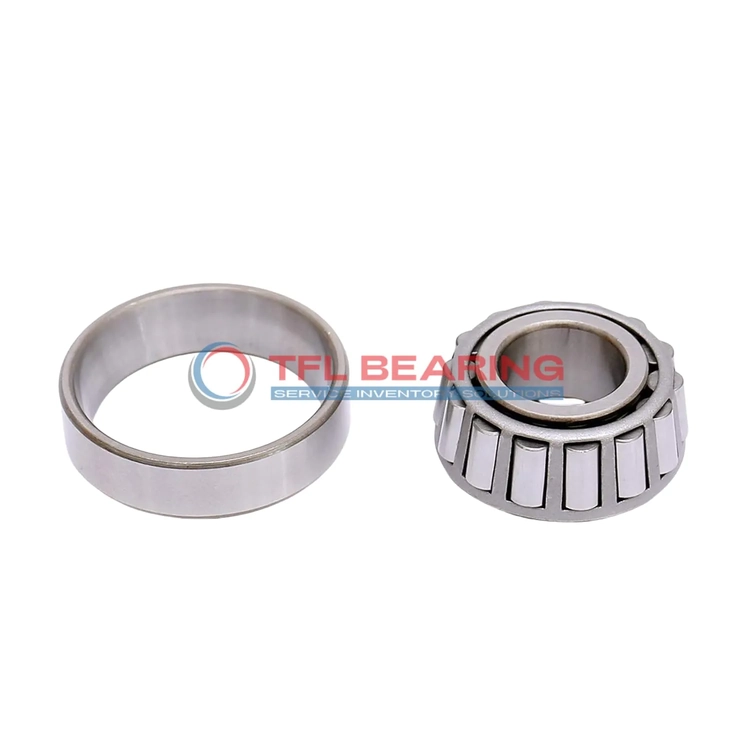

The 26132-26334 is a single-row tapered roller bearing with a 1.3125″ bore and 3.3465″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 15700 lbf radially and 2500 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.2 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26132-26334
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 3.3465" x 0.748"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.3465"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.748"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.59"
  • Cup Frontface Backing Diameter 2.62"
  • Cup Backface Backing Diameter 2.68"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 26132
  • Cup Part Number 26334
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 26000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15700 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

Engineered for Precision: 26132-26334 Bearing

26132-26334 Bearing features a single-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 15,700 lbf.
The precise tolerances and standard radial clearance make it suitable for various industrial applications.
With an ABEC-1 rating, it balances performance and affordability for everyday use.

How Does 26132-26334 Bearing Resist Wear?

26132-26334 Bearing’s chrome steel rollers and rings provide excellent resistance to wear and fatigue.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
It operates efficiently within a temperature range of -30° to 110°C, ensuring reliability in diverse conditions.
Regular lubrication further enhances its longevity and smooth operation.

Structural Advantages of 26132-26334 Bearing

26132-26334 Bearing’s tapered roller design distributes loads evenly, minimising stress concentrations.
Its cone and cup widths are precision-machined to tight tolerances for consistent performance.
The open seal type allows for easy lubrication, reducing maintenance downtime.
With a weight of 1.2 lb, it offers a sturdy yet manageable solution for heavy-duty applications.

Why Choose 26132-26334 Bearing for Combined Loads?

26132-26334 Bearing is designed to handle both radial and thrust loads efficiently.
Its dynamic thrust rating of 2,500 lbf ensures reliable performance under varying load conditions.
The standard radial clearance options (C3/C4/C5) provide flexibility for different operational needs.
Compatible with Timken bearings, it offers a cost-effective alternative without compromising quality.

Application

Industrial Uses of 26132-26334 Bearing
26132-26334 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 26132-26334 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial fans and pumps, 26132-26334 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability during high-speed rotations.

Where Is 26132-26334 Bearing Used?
26132-26334 Bearing can be found in agricultural machinery, supporting components like gearboxes and PTO shafts. Its robust design withstands the vibrations and shocks common in farming equipment.

In material handling systems, 26132-26334 Bearing ensures smooth operation of conveyor belts and lifting mechanisms. The standard radial clearance offers flexibility for different load conditions.

Built for Heavy-Duty Use: 26132-26334 Bearing
26132-26334 Bearing excels in mining equipment, where its high dynamic load capacity handles extreme conditions. The tapered rollers distribute stress evenly, reducing wear over time.

For railway applications, 26132-26334 Bearing provides reliable performance in axle boxes, thanks to its precise tolerances and sturdy construction. The ABEC-1 rating ensures consistent quality.

Automotive vs Aerospace: Applications of 26132-26334 Bearing
In automotive systems, 26132-26334 Bearing is ideal for transmissions, offering smooth power transfer under heavy loads. Its inch measurements align with many standard designs.

While less common in aerospace, 26132-26334 Bearing can be found in ground support equipment, where its durability and ease of maintenance are valued. The temperature range suits most operational environments.
