TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2530

TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2530

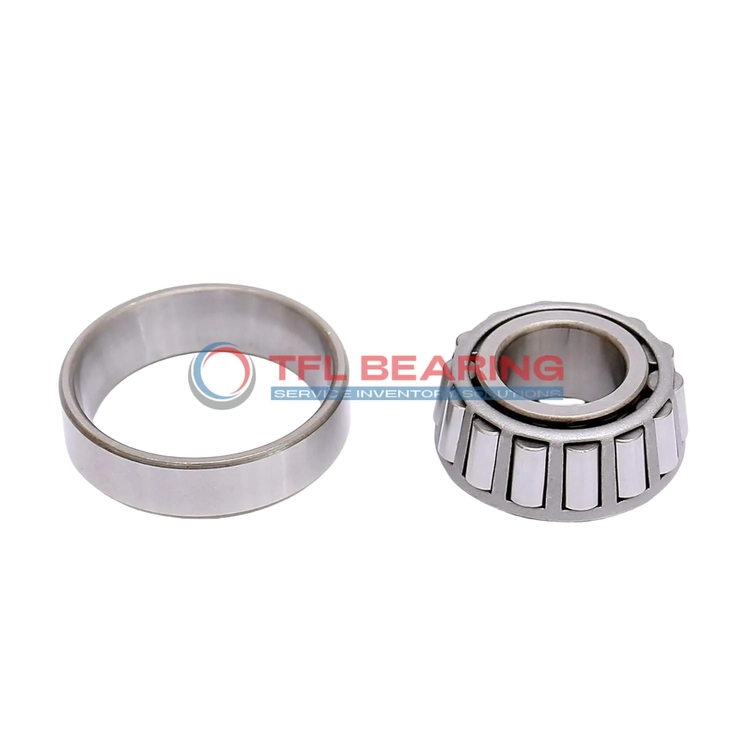

The 2585-2530 is a single-row tapered roller bearing with a 1.3125″ bore and 2.615″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 18800 lbf radially and 2280 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2585-2530
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.615" x 1"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.615"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.9983"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.54"
  • Cone Backface Backing Diameter 1.77"
  • Cup Frontface Backing Diameter 2.48"
  • Cup Backface Backing Diameter 2.36"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2585
  • Cup Part Number 2530
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Engineered for Precision: 2585-2530 Bearing

2585-2530 Bearing features a single-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 18,800 lbf, providing reliable performance under heavy loads.
Precision tolerances and effective lubrication contribute to smooth operation and extended service life.

2585-2530 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance and ABEC-1 rating make it suitable for various industrial uses.

With interchangeable compatibility with Timken bearings, 2585-2530 Bearing offers flexibility.
The steel cage maintains roller alignment, reducing friction and enhancing longevity.

Application

Industrial Uses of 2585-2530 Bearing
2585-2530 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

What Makes 2585-2530 Bearing a Preferred Choice?
In automotive applications, 2585-2530 Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. Its steel cage provides reliable performance under varying loads.

Built for Heavy-Duty Use: 2585-2530 Bearing
For industrial conveyor systems, 2585-2530 Bearing offers smooth operation with its standard radial clearance and open design. The ABEC-1 rating ensures consistent performance in moderate-speed applications.

Automotive vs Aerospace: Applications of 2585-2530 Bearing
While 2585-2530 Bearing excels in truck axles and agricultural machinery, its inch measurements make it less common in aerospace. The bearing’s dynamic radial load capacity suits ground vehicles perfectly.

Essential Roles of 2585-2530 Bearing
2585-2530 Bearing supports gearboxes in mining equipment, where its tapered rollers distribute loads evenly. The temperature range of -30° to 110°C ensures reliability in harsh conditions.
