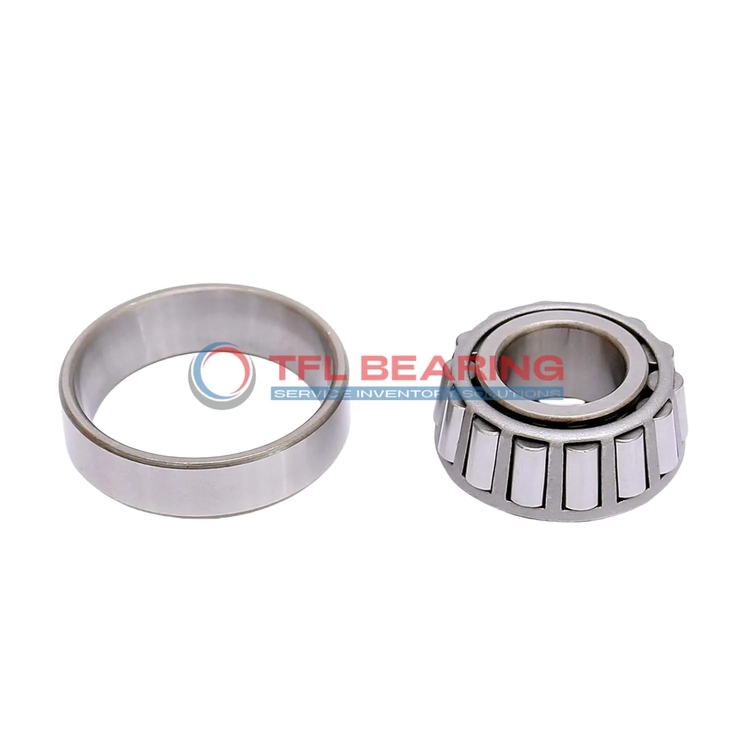

TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2525

TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2525

The 2585-2525 is a single-row tapered roller bearing with a 1.3125″ bore and 2.8355″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 18800 lbf radially and 2280 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2585-2525
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.8355" x 0.9375"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8355"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.9983"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.54"
  • Cone Backface Backing Diameter 1.77"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.48"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2585
  • Cup Part Number 2525
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Performance Features of 2585-2525 Bearing

2585-2525 Bearing is crafted with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 18,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 2585-2525 Bearing Engineered for Reliability?

2585-2525 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction provides strength and wear resistance, extending its service life.
Its standard radial clearance ensures smooth operation, while the open design simplifies maintenance.
The bearing’s effective centre location enhances stability in demanding applications.

Built for Durability: 2585-2525 Bearing

2585-2525 Bearing’s single-row construction ensures reliable performance under combined loads.
The steel cage maintains roller alignment, reducing wear and improving efficiency.
With a static radial load capacity of 21,200 lbf, it handles heavy loads with ease.
Its ABEC-1 rating guarantees consistent precision in various industrial applications.

Steel vs Ceramic Bearings: Strengths of 2585-2525 Bearing

2585-2525 Bearing’s chrome steel rollers and rings provide superior strength and durability.
The tapered roller design efficiently manages both radial and thrust loads.
Its dynamic thrust rating of 2,280 lbf ensures reliable performance in demanding conditions.
The bearing’s standard radial clearance offers flexibility for different operational needs.

Why Choose 2585-2525 Bearing for Precision Tasks?

2585-2525 Bearing’s precise engineering ensures smooth operation under combined loads.
The chrome steel construction resists wear, maintaining performance over time.
With a dynamic radial rating of 4,880 lbf, it excels in high-stress applications.
Its temperature tolerance and standard lubrication requirements make it versatile and easy to maintain.

Application

Industrial Uses of 2585-2525 Bearing
2585-2525 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 2585-2525 Bearing a Preferred Choice?
In automotive applications, 2585-2525 Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing. Its open design allows for easy lubrication, extending service life.

Built for Heavy-Duty Use: 2585-2525 Bearing
For industrial fans and pumps, 2585-2525 Bearing provides reliable performance under radial and thrust loads. The steel cage adds strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 2585-2525 Bearing
In automotive systems, 2585-2525 Bearing supports high-load components like axles. While not typically used in aerospace, its robustness makes it ideal for ground vehicles.

Essential Roles of 2585-2525 Bearing
2585-2525 Bearing is often found in agricultural machinery, where its ABEC-1 rating balances precision and cost. The standard radial clearance ensures smooth operation in varied conditions.
