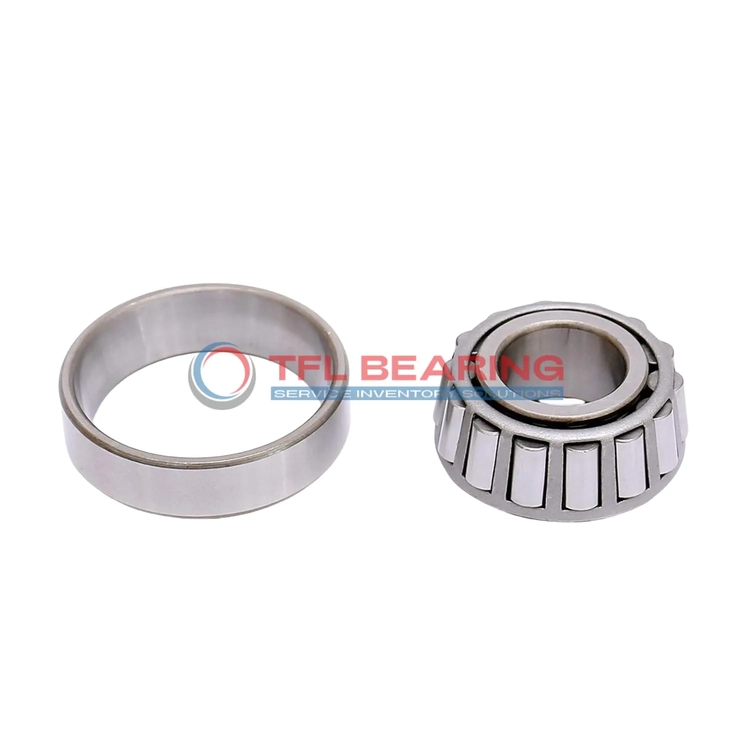

TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2523

TS (Single Row Tapered Roller Bearings) (Imperial) 2585-2523

The 2585-2523 is a single-row tapered roller bearing with a 1.3125″ bore and 2.75″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 18800 lbf radially and 2280 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Weighing just 1 lb, it balances strength and portability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2585-2523
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.75" x 0.9375"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.9983"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.54"
  • Cone Backface Backing Diameter 1.77"
  • Cup Frontface Backing Diameter 2.56"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.34"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2585
  • Cup Part Number 2523
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

How Is 2585-2523 Bearing Engineered for Reliability?

2585-2523 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 18,800 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance and ABEC-1 rating, it offers consistent performance in various conditions.

What Makes 2585-2523 Bearing Suitable for High-Temperature Applications?

2585-2523 Bearing operates reliably in temperatures ranging from -30° to 110°C, thanks to its chrome steel construction.
The tapered roller design efficiently handles both radial and thrust loads, ensuring stable performance.
Its open design allows for easy lubrication, maintaining smooth operation in demanding environments.
The bearing’s robust materials and precise tolerances contribute to its long service life.

Designed for Durability: 2585-2523 Bearing

2585-2523 Bearing features a single-row tapered roller design, optimised for combined load applications.
Its chrome steel components resist wear, while the steel cage ensures proper roller alignment.
The bearing’s dynamic thrust rating of 2,280 lbf highlights its capability in varied conditions.
With standard radial clearance options, it provides flexibility for different installation needs.

Application

Industrial Uses of 2585-2523 Bearing
2585-2523 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes 2585-2523 Bearing a Preferred Choice?
In automotive applications, 2585-2523 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. Its open design allows for easy lubrication, extending service life in high-mileage scenarios.

Built for Heavy-Duty Use: 2585-2523 Bearing
For industrial fans and pumps, 2585-2523 Bearing provides reliable performance under radial and thrust loads. The steel cage adds strength, making it suitable for continuous operation in demanding environments.

Automotive vs Industrial: Applications of 2585-2523 Bearing
In trucks and buses, 2585-2523 Bearing supports axles and transmissions, while in conveyor systems, it ensures smooth material handling. Its standard radial clearance offers flexibility for various installation needs.
