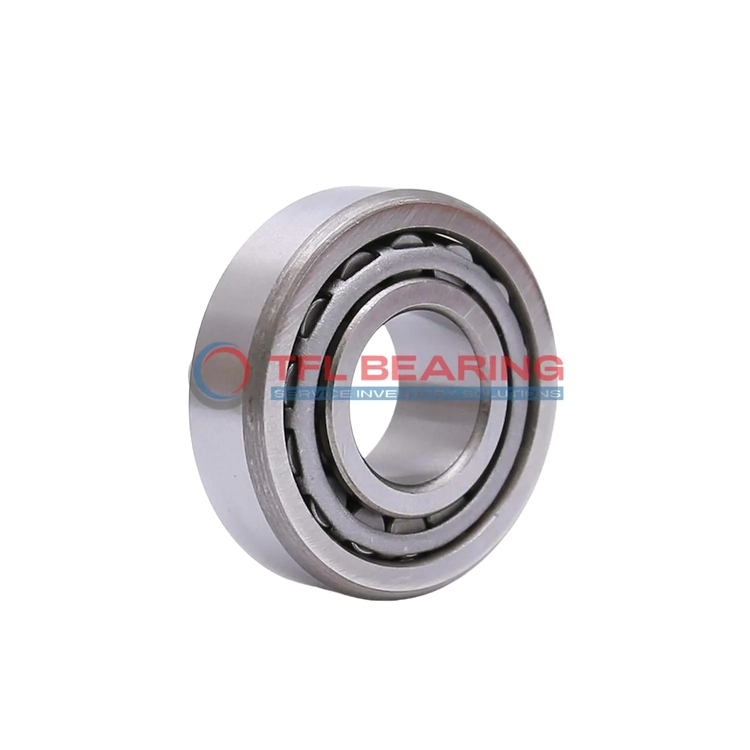

TS (Single Row Tapered Roller Bearings) (Imperial) 2584-2525

TS (Single Row Tapered Roller Bearings) (Imperial) 2584-2525

The 2584-2525 is a single-row tapered roller bearing with a 1.28″ bore and 2.83″ outer diameter, made from sturdy chrome steel. It handles combined loads up to 18800 lbf radially and 2280 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Weighing just 1.1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2584-2525
  • Brand TFL
  • Interchangeable Timken
  • Size 1.2808" x 2.8355" x 1"
  • Bore Dia 1.2808"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8355"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0608"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.2"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.5"
  • Cone Backface Backing Diameter 1.87"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.48"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2584
  • Cup Part Number 2525
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18800 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4880 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

Performance Features of 2584-2525 Bearing

2584-2525 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 18,800 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Does 2584-2525 Bearing Reduce Friction?

2584-2525 Bearing’s tapered roller design minimises friction, promoting smooth operation under heavy loads.
The chrome steel construction ensures durability while maintaining efficient performance.
Its standard radial clearance allows for optimal load distribution, reducing wear over time.
This design makes it suitable for applications requiring both radial and thrust load support.

Built for Reliability: 2584-2525 Bearing

2584-2525 Bearing features a single-row construction that enhances stability in demanding conditions.
The chrome steel components resist wear, ensuring a long service life with proper lubrication.
Its ABEC-1 rating confirms consistent precision for general industrial applications.
With interchangeable compatibility with Timken bearings, it offers flexible replacement options.

Application

Industrial Uses of 2584-2525 Bearing
2584-2525 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 2584-2525 Bearing Used?
You’ll often find 2584-2525 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a straightforward fit for many American-made vehicles.

Built for Heavy-Duty Use: 2584-2525 Bearing
2584-2525 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds stability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 2584-2525 Bearing
In automotive systems, 2584-2525 Bearing supports high radial loads in transmissions and axles. For aerospace, its precision and temperature tolerance make it suitable for auxiliary equipment.

Perfect Fit for Automation: 2584-2525 Bearing
2584-2525 Bearing works well in conveyor systems and robotic arms, where its tapered rollers manage both radial and thrust loads. The standard radial clearance ensures smooth performance in varied conditions.
