TS (Single Row Tapered Roller Bearings) (Imperial) 1975-1929

TS (Single Row Tapered Roller Bearings) (Imperial) 1975-1929

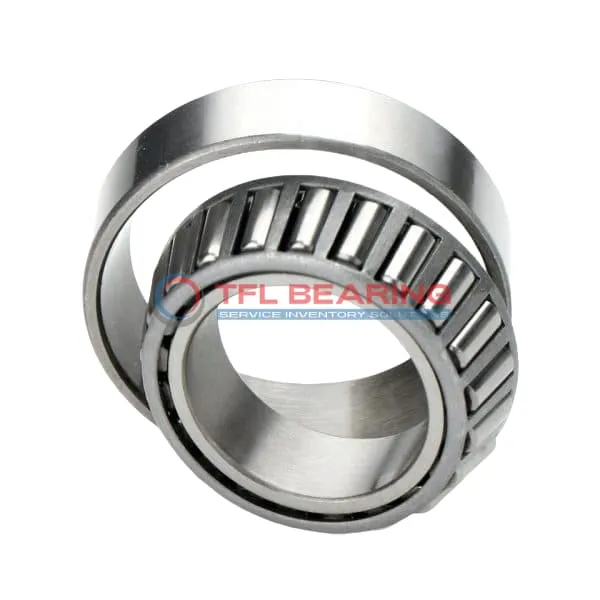

The 1975-1929 is a single-row tapered roller bearing with a 0.875″ bore and 2.375″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 10900 lbf radially and 1590 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides efficient load distribution, enhancing durability.

Suitable for maintenance-friendly setups, it’s a reliable choice for both new installations and replacements. Works well in moderate-speed applications requiring robust load handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1975-1929
  • Brand TFL
  • Interchangeable Timken
  • Size 0.875" x 2.375" x 0.7501"
  • Bore Dia 0.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.762"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5937"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.2"
  • Cup Frontface Backing Diameter 2.20"
  • Cup Backface Backing Diameter 2.05"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 1975
  • Cup Part Number 1929
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 1900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 10900 lbf
  • Static Radial Load 11300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2820 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1590 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 1975-1929 Bearing

1975-1929 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 10,900 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

How Is 1975-1929 Bearing Engineered for Reliability?

1975-1929 Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its ABEC-1 rating ensures consistent performance in precision applications.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: 1975-1929 Bearing

1975-1929 Bearing’s chrome steel rollers and rings provide excellent wear resistance, even under heavy loads.
The steel cage ensures proper roller spacing, reducing wear and improving efficiency.
With a static radial load capacity of 11,300 lbf, it delivers reliable performance in demanding environments.
Its standard cup type design simplifies installation and maintenance.

Application

Industrial Uses of 1975-1929 Bearing
The 1975-1929 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 1975-1929 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 1975-1929 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds robustness, making it suitable for continuous operation.

What Makes 1975-1929 Bearing a Preferred Choice?
The 1975-1929 Bearing stands out in applications like gearboxes and power transmission systems, where its ABEC-1 rating ensures consistent performance. Its standard radial clearance offers flexibility for various operational needs.

In mining equipment, 1975-1929 Bearing’s dynamic radial load capacity of 10,900 lbf makes it a reliable component for heavy-duty use. The tapered roller design also helps distribute loads evenly, reducing wear over time.

Built for Heavy-Duty Use: 1975-1929 Bearing
The 1975-1929 Bearing is ideal for forklifts and other material handling equipment, thanks to its robust chrome steel rollers and steel cage. Its temperature range of -30° to 110°C ensures performance in diverse conditions.

For railway applications, 1975-1929 Bearing’s effective center location and tapered design provide stability under varying loads. The open seal type simplifies maintenance, making it a practical choice for long-term use.
