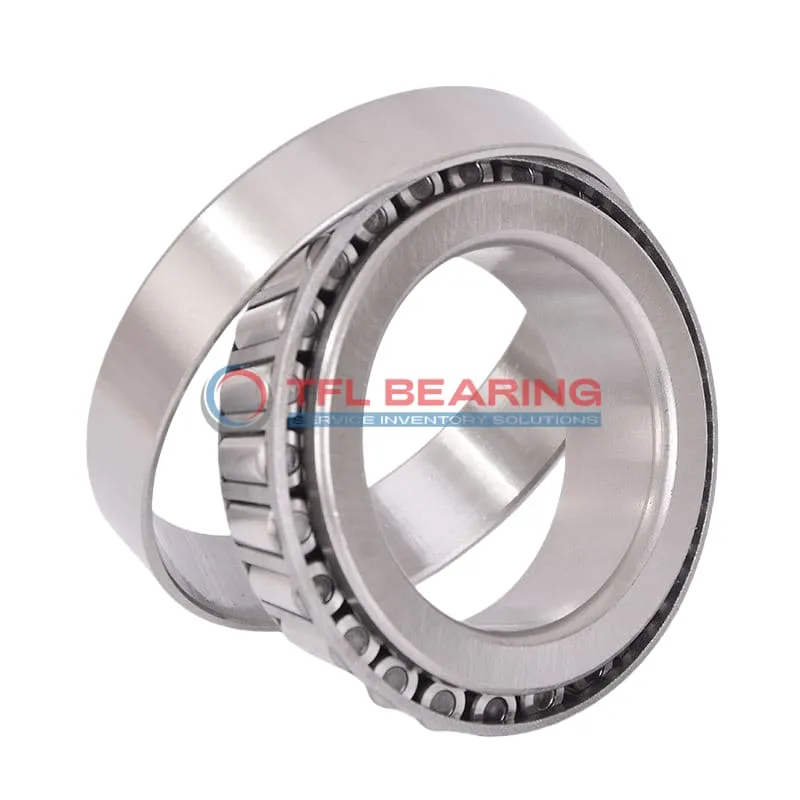

TS (Single Row Tapered Roller Bearings) (Imperial) 19138-19283X

TS (Single Row Tapered Roller Bearings) (Imperial) 19138-19283X

The 19138-19283X is a single-row tapered roller bearing with a 1.377″ bore and 2.8346″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 11400 lbf radially and 2250 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.7 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides efficient load distribution, reducing wear over time.

Perfect for industrial settings requiring reliable, long-lasting bearings. The inch measurements make it suitable for machinery using imperial units.

Easy to install and maintain, this bearing is a practical choice for engineers and maintenance teams. Its durable construction ensures it stands up to demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 19138-19283X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.377" x 2.8346" x 0.6701"
  • Bore Dia 1.377"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8346"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.6504"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.6701"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.59"
  • Cone Backface Backing Diameter 1.67"
  • Cup Frontface Backing Diameter 2.62"
  • Cup Backface Backing Diameter 2.44"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 19138
  • Cup Part Number 19283X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 19000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11400 lbf
  • Static Radial Load 13000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 19138-19283X Bearing

19138-19283X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 11,400 lbf, ensuring reliable performance in various applications.

The single-row tapered roller design provides effective load distribution, enhancing durability.
With a standard radial clearance, it balances precision and adaptability in different operating conditions.

19138-19283X Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
The steel cage maintains roller alignment, reducing friction and extending service life.

This bearing requires lubrication but offers straightforward maintenance, making it practical for long-term use.
Its ABEC-1 rating ensures consistent performance for general industrial applications.

Application

Industrial Uses of 19138-19283X Bearing
19138-19283X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 19138-19283X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial conveyor systems, 19138-19283X Bearing offers smooth operation thanks to its standard radial clearance and open design. The steel cage adds extra strength, making it suitable for continuous use in production lines.

What Makes 19138-19283X Bearing a Preferred Choice?
19138-19283X Bearing stands out in applications requiring precise load distribution, such as gearboxes and power transmission systems. Its ABEC-1 rating ensures consistent performance without overcomplicating the design.

The bearing’s temperature range of -30° to 110°C makes it versatile for both indoor and outdoor machinery. Whether in factory settings or mobile equipment, it maintains reliability across different environments.
