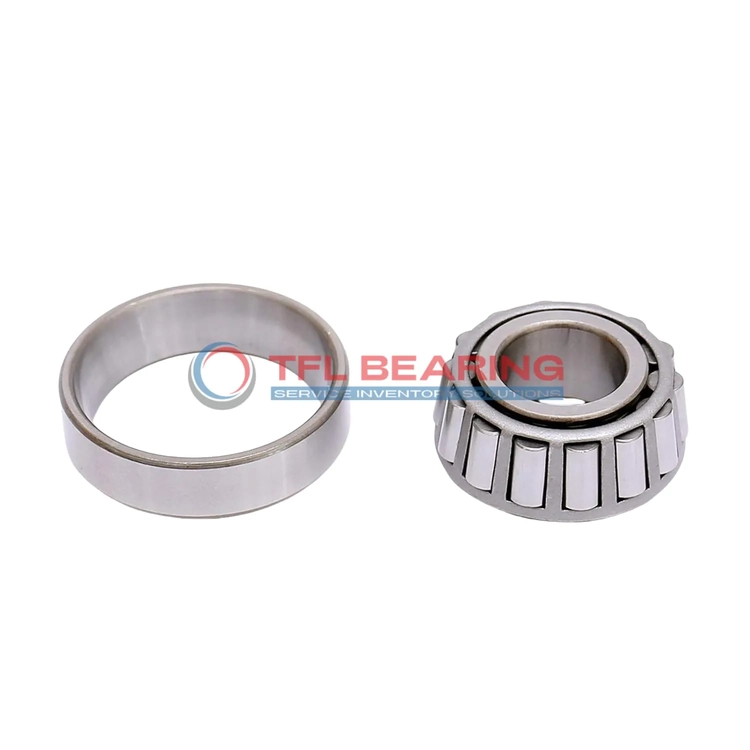

TS (Single Row Tapered Roller Bearings) (Imperial) 16582-16522

TS (Single Row Tapered Roller Bearings) (Imperial) 16582-16522

The 16582-16522 is a single-row tapered roller bearing with a 1.3125″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15000 lbf radial and 1830 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16582-16522
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.6875" x 0.875"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.61"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.29"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 16582
  • Cup Part Number 16522
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 16500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15000 lbf
  • Static Radial Load 17500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3890 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1830 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 16582-16522 Bearing

16582-16522 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 15,000 lbf, making it suitable for heavy-duty applications.
The tapered roller design ensures smooth operation and efficient load distribution.

How Is 16582-16522 Bearing Engineered for Reliability?

16582-16522 Bearing features a steel cage that maintains roller alignment, reducing wear.
With a static radial load of 17,500 lbf, it delivers dependable performance under stress.
The open design allows for easy lubrication, extending its service life.

Built for Durability: 16582-16522 Bearing

16582-16522 Bearing operates in temperatures from -30° to 110°C, adapting to various environments.
Its standard radial clearance ensures consistent performance in diverse conditions.
The tapered rollers and chrome steel construction enhance longevity and reliability.

Steel vs Ceramic Bearings: Strengths of 16582-16522 Bearing

16582-16522 Bearing uses chrome steel rollers for superior strength and wear resistance.
The steel cage provides stability, ensuring smooth rotation under heavy loads.
With ABEC-1 precision, it balances performance and affordability for industrial use.

Application

Industrial Uses of 16582-16522 Bearing
16582-16522 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 16582-16522 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. Its open design simplifies lubrication, which is essential for long-term performance.

For industrial conveyor systems, 16582-16522 Bearing’s ability to manage radial and thrust loads makes it a reliable choice. The steel cage adds extra strength, reducing wear during continuous operation.
