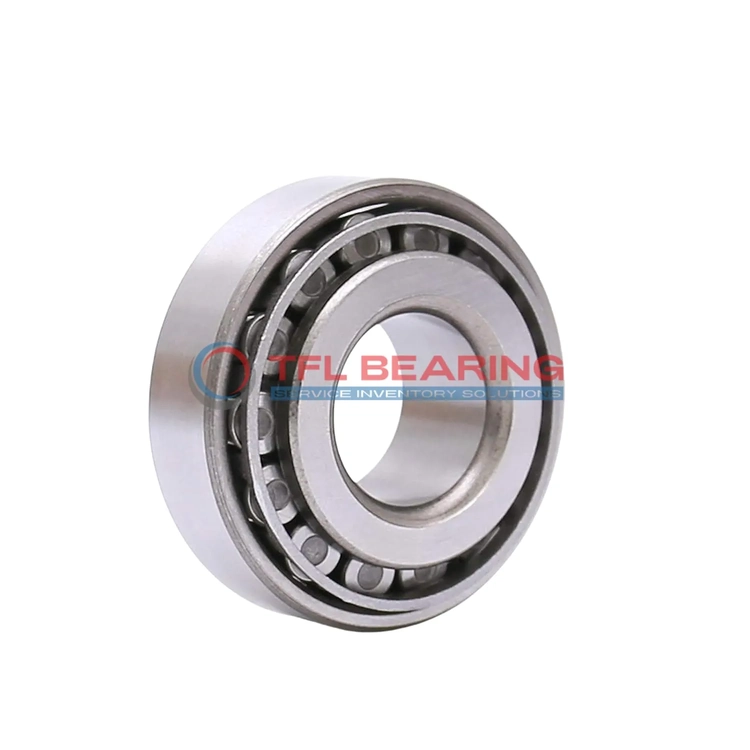

TS (Single Row Tapered Roller Bearings) (Imperial) 15120-15244

TS (Single Row Tapered Roller Bearings) (Imperial) 15120-15244

The 15120-15244 is a single-row tapered roller bearing with a 1.1895″ bore and 2.4409″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 13500 lbf radially and 2090 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in automotive or industrial machinery where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15120-15244
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1895" x 2.4409" x 0.8125"
  • Bore Dia 1.1895"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.4"
  • Cone Backface Backing Diameter 1.42"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15120
  • Cup Part Number 15244
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Why Choose 15120-15244 Bearing for Precision Tasks?

15120-15244 Bearing is crafted with chrome steel rings and rollers, ensuring durability and precision in combined load applications.
Its dynamic radial load capacity of 13500 lbf makes it suitable for demanding industrial environments.

The single-row tapered design enhances stability, while the steel cage maintains proper roller alignment.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

15120-15244 Bearing’s standard radial clearance options offer flexibility for different installation needs.
Its ABEC-1 rating ensures consistent performance for precision tasks.

Application

Industrial Uses of 15120-15244 Bearing
15120-15244 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 15120-15244 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a go-to choice for older or custom vehicle models.

For industrial conveyor systems, 15120-15244 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

What Makes 15120-15244 Bearing a Preferred Choice?
15120-15244 Bearing stands out in machinery requiring precise radial and thrust load management, such as gearboxes and pumps. Its ABEC-1 rating ensures consistent performance for general industrial use.

The bearing’s standard radial clearance options (C3/C4/C5) make it adaptable to different operational needs. This flexibility is particularly useful in applications with varying thermal expansion requirements.

Built for Heavy-Duty Use: 15120-15244 Bearing
15120-15244 Bearing excels in mining equipment, where its robust design withstands high loads and harsh conditions. The tapered rollers distribute stress evenly, reducing premature wear.

In forestry machinery, this bearing’s temperature range (-30° to 110°C) ensures reliability in extreme weather. The steel cage and chrome steel components further enhance its longevity.

Automotive vs Aerospace: Applications of 15120-15244 Bearing
In automotive systems, 15120-15244 Bearing is often found in drivetrains, offering smooth operation under combined loads. Its imperial sizing simplifies replacements in older vehicles.

For aerospace ground support equipment, this bearing provides dependable performance in load-handling mechanisms. While not for in-flight use, it’s trusted for maintenance and testing rigs.
