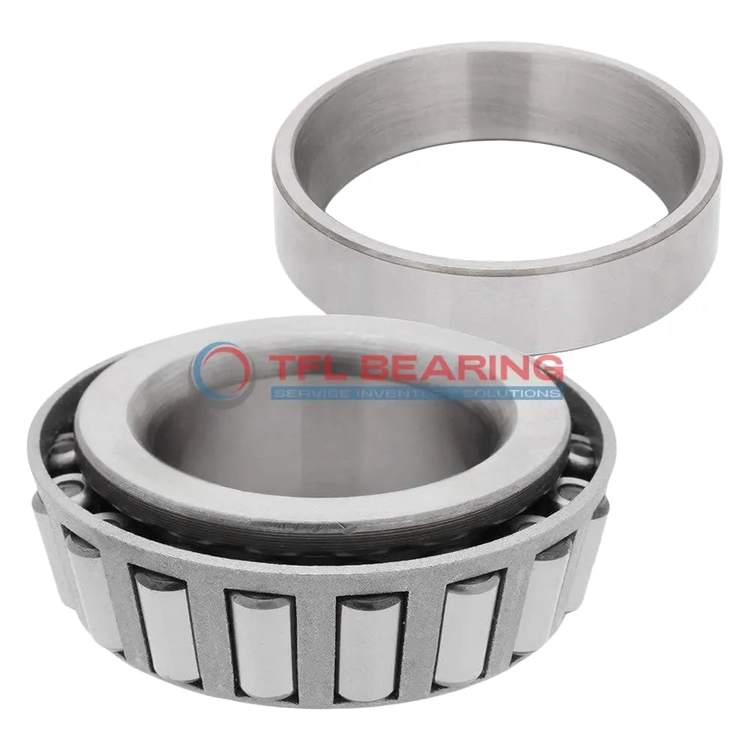

TS (Single Row Tapered Roller Bearings) (Imperial) 15117-15244X

TS (Single Row Tapered Roller Bearings) (Imperial) 15117-15244X

The 15117-15244X is a single-row tapered roller bearing with a 1.18″ bore and 2.44″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 13500 lbf radially and 2090 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are present.

Weighing just 0.6lb, it balances strength with manageable size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15117-15244X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1806" x 2.4409" x 0.8125"
  • Bore Dia 1.1806"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.38"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15117
  • Cup Part Number 15244X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 15117-15244X Bearing

15117-15244X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 15117-15244X Bearing Engineered for Reliability?

15117-15244X Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability and resistance to wear.
Its standard radial clearance ensures smooth operation in most industrial applications.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Built for Durability: 15117-15244X Bearing

15117-15244X Bearing’s tapered roller design distributes loads evenly, extending service life.
The steel cage maintains roller positioning, reducing maintenance needs.
Its static radial load capacity of 12,100 lbf ensures reliability under heavy loads.
Operating between -30° to 110°C, it performs consistently in various environments.

Steel vs Ceramic Bearings: Strengths of 15117-15244X Bearing

15117-15244X Bearing uses chrome steel for both rings and rollers, offering excellent strength.
This material choice provides good wear resistance while keeping costs reasonable.
The bearing handles dynamic thrust loads up to 2,090 lbf (Ca90 rating).
Its standard lubrication requirement ensures easy maintenance in most applications.

Application

Industrial Uses of 15117-15244X Bearing
15117-15244X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes 15117-15244X Bearing a Preferred Choice?
In automotive applications, 15117-15244X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a go-to for American and British vehicle models.

Built for Heavy-Duty Use: 15117-15244X Bearing
For conveyor systems and industrial fans, 15117-15244X Bearing offers smooth operation with its standard radial clearance. The steel cage adds stability, making it suitable for high-use environments.

Automotive vs Aerospace: Applications of 15117-15244X Bearing
While 15117-15244X Bearing excels in car transmissions, its precision also suits aerospace components like landing gear mechanisms. The ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of 15117-15244X Bearing
In robotics, 15117-15244X Bearing supports joint movements with its tapered roller design, ensuring precise motion control. The open seal type allows for easy lubrication, extending its service life.
