TS (Single Row Tapered Roller Bearings) (Imperial) 15113-15244

TS (Single Row Tapered Roller Bearings) (Imperial) 15113-15244

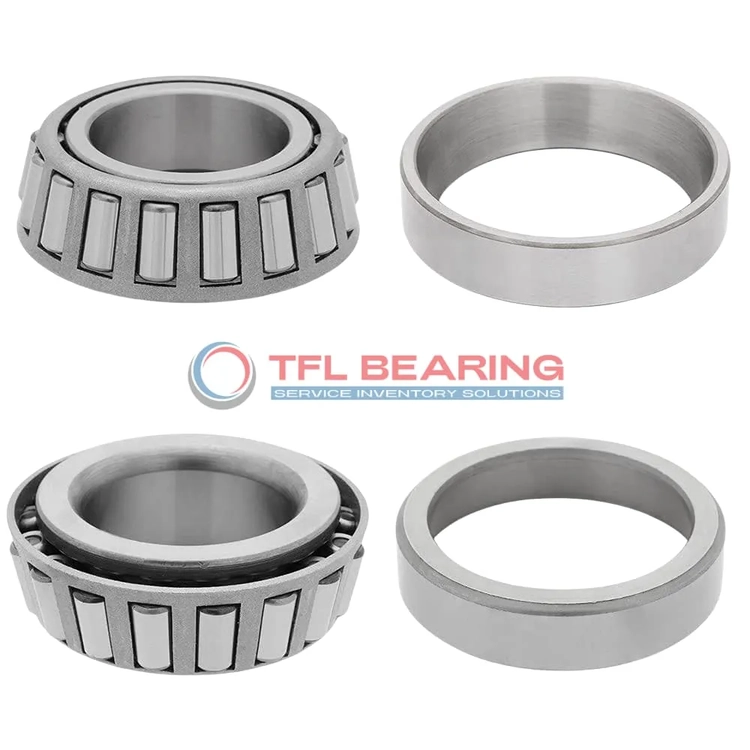

The 15113-15244 is a single-row tapered roller bearing with a 1.125″ bore and 2.4409″ outer diameter, crafted from robust chrome steel. It manages combined loads up to 13500 lbf radially and 2090 lbf thrust, suitable for demanding applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing 0.600 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15113-15244
  • Brand TFL
  • Interchangeable Timken
  • Size 1.125" x 2.4409" x 0.8125"
  • Bore Dia 1.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.34"
  • Cone Backface Backing Diameter 1.36"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15113
  • Cup Part Number 15244
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 15113-15244 Bearing

15113-15244 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 15113-15244 Bearing Engineered for Reliability?

15113-15244 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 2,090 lbf (Ca90) makes it versatile for different applications.
The open seal type allows for easy lubrication, maintaining performance over time.

Built for Durability: 15113-15244 Bearing

15113-15244 Bearing’s tapered roller design ensures efficient load distribution, reducing wear.
The chrome steel components resist deformation under high static radial loads of 12,100 lbf.
Its ABEC-1 rating guarantees consistent precision in industrial settings.
The standard cup type simplifies installation, saving time during maintenance.

Steel vs Ceramic Bearings: Strengths of 15113-15244 Bearing

15113-15244 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
The material choice ensures reliable operation under dynamic radial loads up to 13,500 lbf.
Its steel cage provides stability, while the open design allows for easy lubrication.
With a wide temperature range, it adapts well to varying industrial environments.

Application

Industrial Uses of 15113-15244 Bearing
15113-15244 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 15113-15244 Bearing Used?
You’ll often find 15113-15244 Bearing in automotive applications like truck wheel hubs, where its precise imperial sizing fits standard components. Its open design allows for easy lubrication, keeping performance smooth over long periods.

Built for Heavy-Duty Use: 15113-15244 Bearing
15113-15244 Bearing excels in industrial fans and pumps, where its dynamic radial load capacity keeps things running reliably. The steel cage adds extra strength, making it a solid choice for high-stress environments.

Automotive vs Aerospace: Applications of 15113-15244 Bearing
In automotive systems, 15113-15244 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its temperature range and ABEC-1 rating make it versatile for both fields.

Perfect Fit for Automation: 15113-15244 Bearing
15113-15244 Bearing works well in conveyor systems and robotic arms, where its tapered rollers manage radial and thrust loads seamlessly. The standard radial clearance ensures smooth operation in automated setups.
