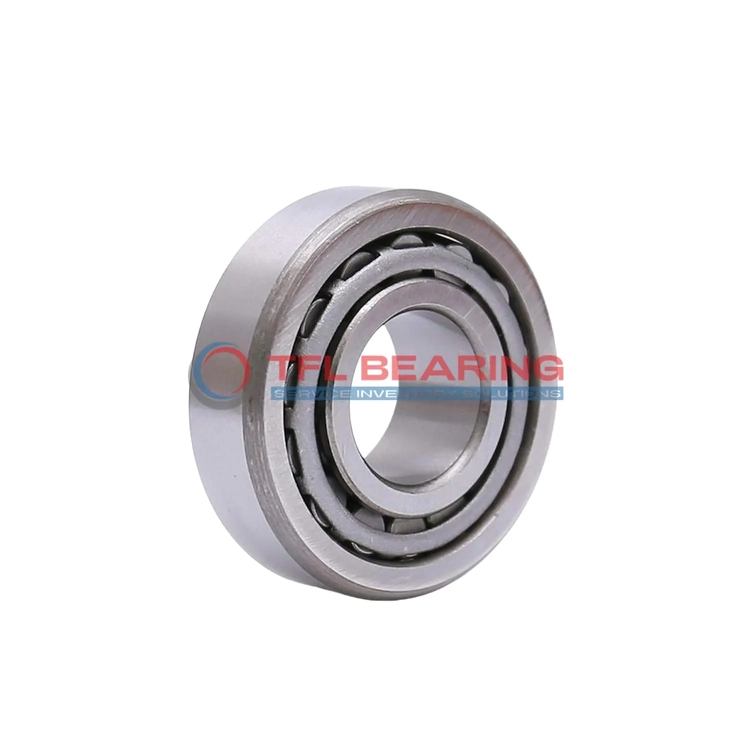

TS (Single Row Tapered Roller Bearings) (Imperial) 14130-14284

TS (Single Row Tapered Roller Bearings) (Imperial) 14130-14284

The 14130-14284 is a single-row tapered roller bearing with a 1.3125″ bore and 2.8345″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14130-14284
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.8345" x 0.8813"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8345"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.725"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.56"
  • Cone Backface Backing Diameter 1.81"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.36"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14130
  • Cup Part Number 14284
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 14130-14284 Bearing

14130-14284 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 14130-14284 Bearing Engineered for Reliability?

14130-14284 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent strength and wear resistance.
Its dynamic thrust rating of 2,080 lbf ensures consistent performance under pressure.
The standard radial clearance options allow for flexibility in different applications.

Built for Durability: 14130-14284 Bearing

14130-14284 Bearing’s robust chrome steel components ensure long-lasting performance.
The tapered roller design efficiently manages both radial and thrust loads.
With a static radial load capacity of 13,900 lbf, it handles demanding conditions with ease.
Its ABEC-1 rating guarantees reliable precision in various industrial uses.

Application

Industrial Uses of 14130-14284 Bearing
14130-14284 Bearing is commonly used in heavy machinery like conveyor systems and agricultural equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 14130-14284 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial automation, 14130-14284 Bearing supports robotic arms and assembly line equipment, thanks to its precise load distribution. The open design allows for easy lubrication, extending its service life in high-use scenarios.

Where Is 14130-14284 Bearing Used?
You’ll often find 14130-14284 Bearing in construction equipment like bulldozers and cranes, where its robust design handles heavy radial and thrust loads. The steel cage adds extra strength for long-term reliability.

In railway applications, 14130-14284 Bearing is ideal for axle boxes, ensuring smooth operation under constant vibration. Its temperature tolerance makes it suitable for diverse climates and operating conditions.

Built for Heavy-Duty Use: 14130-14284 Bearing
14130-14284 Bearing excels in mining equipment, where its tapered rollers manage extreme loads and harsh conditions. The standard radial clearance option provides flexibility for different installation needs.

For power transmission systems, 14130-14284 Bearing offers stable performance in gearboxes and pulleys. Its ABEC-1 rating ensures consistent quality for general industrial applications.

Automotive vs Aerospace: Applications of 14130-14284 Bearing
In automotive systems, 14130-14284 Bearing is a go-to for drivetrain components, balancing durability and cost-effectiveness. The inch measurements simplify replacements in older machinery.

While not typically used in aerospace, 14130-14284 Bearing suits ground support equipment like tugs and loaders. Its static radial load capacity ensures safety in critical lifting operations.
