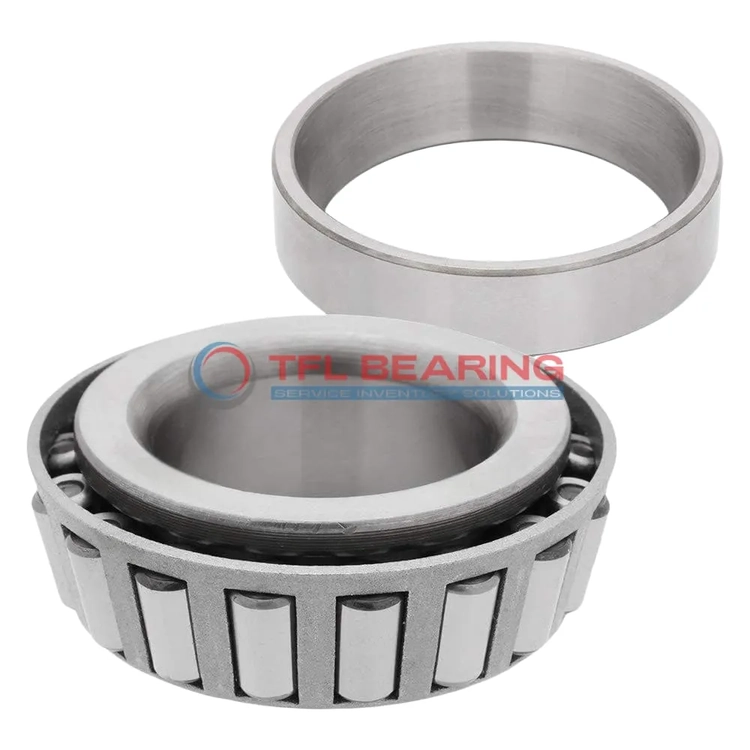

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14299

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14299

The 14117A-14299 is a single-row tapered roller bearing with a 1.1811″ bore and 3.0625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in automotive axles or industrial gearboxes where combined loads are common.

Weighing just 1.1 lb, it’s a compact yet robust choice. Compliant with RoHS and REACH standards, it’s safe for widespread use. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A-14299
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 3.0625" x 0.7813"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.0625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.69"
  • Cup Frontface Backing Diameter 2.62"
  • Cup Backface Backing Diameter 2.52"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14117A
  • Cup Part Number 14299
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

How Is 14117A-14299 Bearing Engineered for Reliability?

14117A-14299 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, making it suitable for demanding applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Structural Advantages of 14117A-14299 Bearing

14117A-14299 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The precise cone and cup dimensions ensure smooth operation and easy installation.
Its chrome steel construction resists wear, providing long-term performance.
The standard radial clearance offers flexibility for different application needs.

Why Choose 14117A-14299 Bearing for Precision Tasks?

14117A-14299 Bearing’s ABEC-1 rating ensures consistent precision in rotational tasks.
The effective center location design enhances stability during operation.
Its dynamic thrust rating of 2,080 lbf supports reliable performance under load.
The open seal type allows for easy lubrication and maintenance.

Application

Industrial Uses of 14117A-14299 Bearing
14117A-14299 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 14117A-14299 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for older or custom vehicle models.

For industrial conveyor systems, 14117A-14299 Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 14117A-14299 Bearing Used?
You’ll often find 14117A-14299 Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even in dusty environments.

In manufacturing plants, 14117A-14299 Bearing supports machinery like presses and rollers, thanks to its robust design. The ABEC-1 rating makes it suitable for general industrial applications.

Built for Heavy-Duty Use: 14117A-14299 Bearing
14117A-14299 Bearing excels in forestry equipment, where its tapered rollers manage uneven loads effortlessly. The chrome steel rollers and rings provide long-lasting performance.

For railway applications, 14117A-14299 Bearing’s durability makes it ideal for axle boxes and gearboxes. Its temperature range ensures reliability in both hot and cold climates.

Automotive vs Aerospace: Applications of 14117A-14299 Bearing
In automotive settings, 14117A-14299 Bearing is trusted for drivetrain components due to its load capacity. The imperial measurements simplify replacements in older vehicles.

For aerospace ground equipment, 14117A-14299 Bearing offers dependable performance in tow tractors and loaders. Its steel cage and chrome steel construction meet industry standards.
