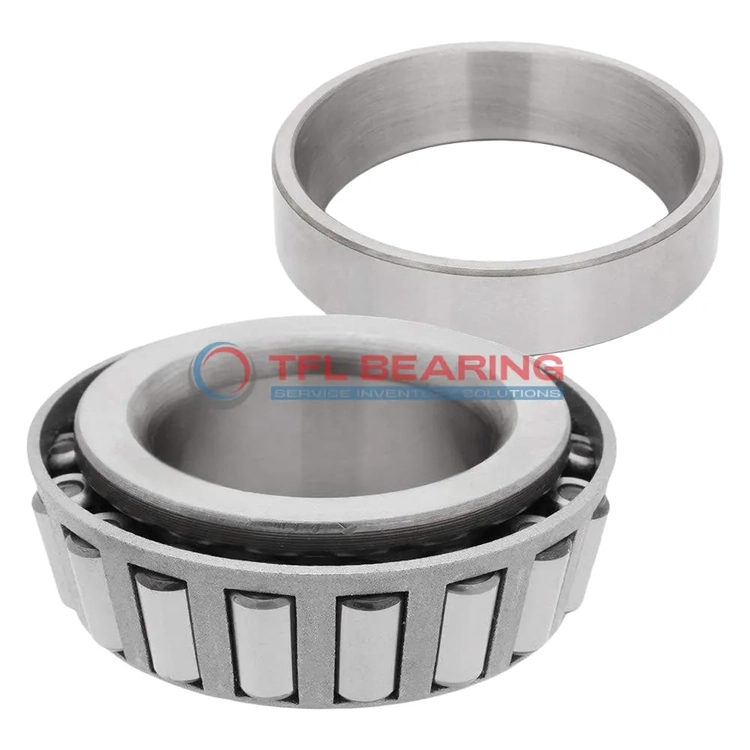

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14284

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14284

The 14117A-14284 is a single-row tapered roller bearing with a 1.1811″ bore and 2.8345″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing just 1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A-14284
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 2.8345" x 0.8813"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8345"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.725"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.69"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.36"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14117A
  • Cup Part Number 14284
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

How Is 14117A-14284 Bearing Engineered for Reliability?

14117A-14284 Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring dependable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Structural Advantages of 14117A-14284 Bearing

14117A-14284 Bearing’s single-row tapered design efficiently handles both radial and thrust loads.
The precise cone and cup width tolerances ensure smooth operation and easy installation.
Chrome steel construction enhances durability, making it suitable for heavy-duty use.
Its standard radial clearance options offer flexibility for different operational needs.

Why Choose 14117A-14284 Bearing for Precision Tasks?

14117A-14284 Bearing’s ABEC-1 rating ensures consistent performance in precision applications.
The effective center location design improves load distribution, reducing wear.
With dynamic thrust rating of 2,080 lbf, it balances precision and strength.
Its open seal type allows for easy lubrication, maintaining optimal performance.

Application

Industrial Uses of 14117A-14284 Bearing
14117A-14284 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 14117A-14284 Bearing Used?
You’ll often find 14117A-14284 Bearing in automotive applications like truck wheel hubs, where its robust design supports both radial and thrust loads. The inch sizing makes it a good fit for North American vehicle models.

Built for Heavy-Duty Use: 14117A-14284 Bearing
14117A-14284 Bearing excels in industrial gearboxes, providing reliable performance under high stress. Its open design allows for easy lubrication, extending service life in continuous operation.

Automotive vs Aerospace: Applications of 14117A-14284 Bearing
In automotive systems, 14117A-14284 Bearing handles wheel and transmission loads, while in aerospace, it’s suited for auxiliary equipment due to its precise load ratings. The steel cage adds stability in both sectors.

Perfect Fit for Automation: 14117A-14284 Bearing
14117A-14284 Bearing works well in automated conveyor systems, where its tapered rollers manage varying loads smoothly. The standard radial clearance ensures consistent performance in repetitive tasks.
