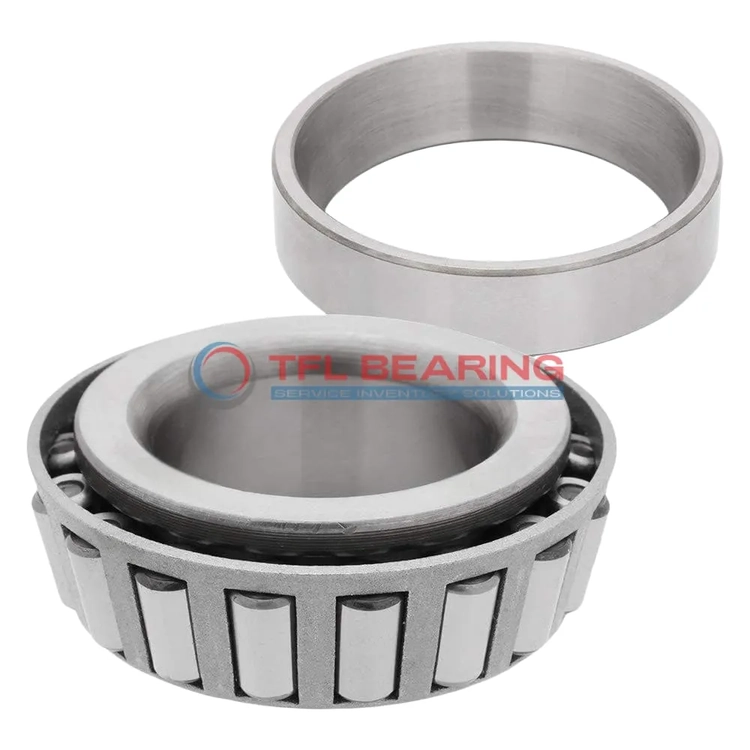

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14283

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14283

The 14117A-14283 is a single-row tapered roller bearing with a 1.1811″ bore and 2.838″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 1 lb, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A-14283
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 2.838" x 0.8813"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.838"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.725"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.69"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.36"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14117A
  • Cup Part Number 14283
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

How Is 14117A-14283 Bearing Engineered for Reliability?

14117A-14283 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance across various conditions.

What Makes 14117A-14283 Bearing Suitable for High-Temperature Applications?

14117A-14283 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction resists thermal deformation, maintaining performance in demanding environments.
Its open design allows for easy lubrication, ensuring smooth operation even under high heat.
This makes it a dependable choice for industrial and automotive applications.

Designed for Durability: 14117A-14283 Bearing

14117A-14283 Bearing is built with precision to handle both radial and thrust loads.
The tapered roller design distributes stress evenly, reducing wear and tear.
Its standard radial clearance options provide flexibility for different installation needs.
With a static radial load capacity of 13,900 lbf, it ensures long-term reliability.

Steel vs Ceramic Bearings: Strengths of 14117A-14283 Bearing

14117A-14283 Bearing uses chrome steel for both rings and rollers, offering excellent strength and durability.
This material choice ensures resistance to wear and fatigue, even under heavy loads.
The steel cage further enhances stability, keeping rollers in place during operation.
Its robust construction makes it a cost-effective alternative to ceramic bearings in many applications.

Application

Common Applications of 14117A-14283 Bearing
14117A-14283 Bearing is widely used in industrial machinery, especially in gearboxes and conveyor systems where combined radial and thrust loads are common. Its tapered roller design ensures smooth operation even under heavy loads.
In automotive applications, 14117A-14283 Bearing can be found in wheel hubs and differential systems, providing reliable performance over long distances. The chrome steel construction adds to its durability in tough conditions.
For agricultural equipment, 14117A-14283 Bearing handles the demanding loads of tractors and harvesters. The open design allows for easy lubrication, extending its service life in dusty environments.

Where Is 14117A-14283 Bearing Used?
14117A-14283 Bearing is a popular choice for construction equipment like cranes and excavators, where its ability to handle combined loads is essential. The inch sizing makes it compatible with many North American machines.
You’ll also find 14117A-14283 Bearing in mining machinery, where its robust design withstands harsh operating conditions. The steel cage ensures stability even during prolonged use.

Built for Heavy-Duty Use: 14117A-14283 Bearing
14117A-14283 Bearing excels in heavy machinery applications, such as presses and rolling mills. Its tapered rollers distribute loads evenly, reducing wear and tear.
The bearing’s standard radial clearance makes it versatile for various industrial settings. Maintenance is straightforward, thanks to its open design and easy lubrication access.

Automotive vs Industrial: Applications of 14117A-14283 Bearing
In automotive systems, 14117A-14283 Bearing is often used in drivetrains, where it handles both radial and thrust forces efficiently. The ABEC-1 rating ensures consistent performance.
For industrial uses, this bearing supports heavy equipment like pumps and compressors. Its chrome steel rollers provide long-lasting reliability in high-stress environments.
