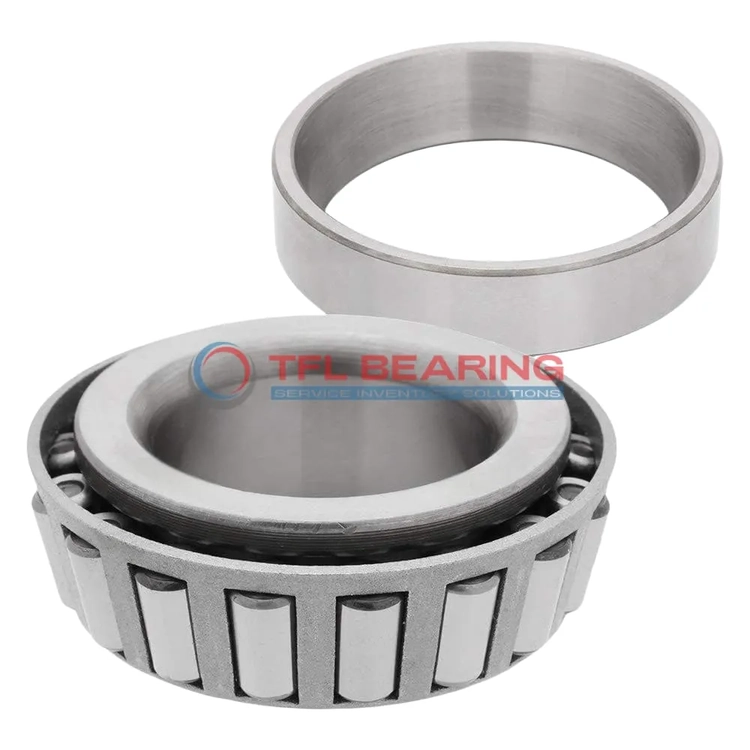

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14276

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14276

The 14117A-14276 is a single-row tapered roller bearing with a 1.1811″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 0.8lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A-14276
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 2.717" x 0.7813"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.69"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.36"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14117A
  • Cup Part Number 14276
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 14117A-14276 Bearing

14117A-14276 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

14117A-14276 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 14117A-14276 Bearing
14117A-14276 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 14117A-14276 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial conveyor systems, 14117A-14276 Bearing’s open design simplifies lubrication, extending service life in high-use settings. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 14117A-14276 Bearing Used?
14117A-14276 Bearing is often found in mining equipment, where its robust design copes with heavy radial and thrust loads. The standard radial clearance offers flexibility for different operational needs.

In power transmission systems, 14117A-14276 Bearing supports shafts and gears, ensuring smooth rotation under stress. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 14117A-14276 Bearing
14117A-14276 Bearing excels in forestry machinery, handling uneven loads and harsh conditions with ease. The tapered rollers distribute stress evenly, reducing wear over time.

For pump systems, 14117A-14276 Bearing’s compatibility with Timken models makes it a versatile choice. Its temperature range suits both indoor and outdoor applications.

Automotive vs Aerospace: Applications of 14117A-14276 Bearing
In automotive settings, 14117A-14276 Bearing is ideal for drivetrain components, offering a balance of strength and precision. The inch measurements align with many classic car restorations.

For aerospace ground support equipment, 14117A-14276 Bearing provides reliable performance without the need for specialised maintenance. Its standard lubrication requirements keep operational costs manageable.
