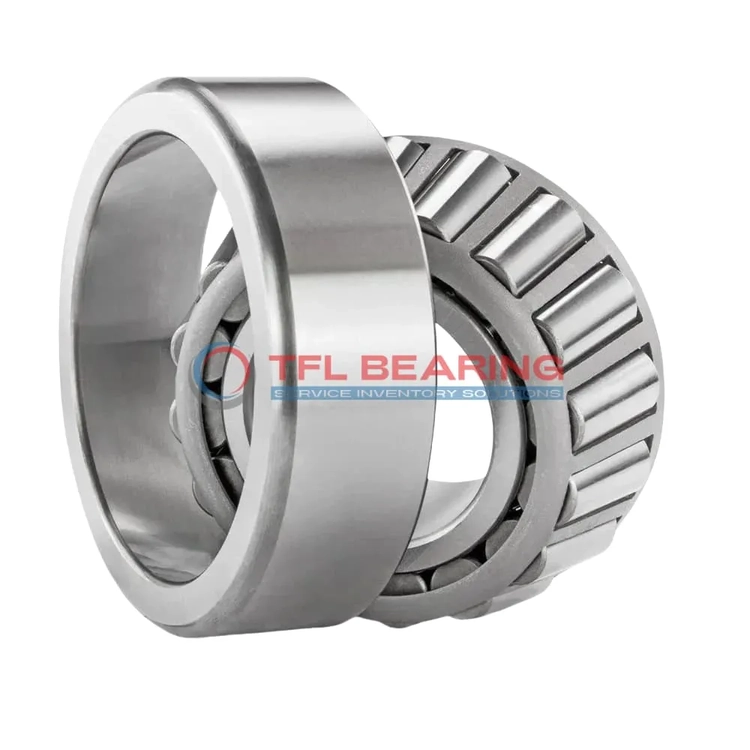

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13624

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13624

The 13687-13624 is a single-row tapered roller bearing with a 1.5″ bore and 2.7547″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 15100 lbf radially and 2700 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.7 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13687-13624
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.7547" x 0.866"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.7547"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7098"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.866"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.83"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13687
  • Cup Part Number 13624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Engineered for Precision: 13687-13624 Bearing

13687-13624 Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity of 15100 lbf makes it suitable for heavy-duty machinery.
With a standard radial clearance, it offers reliable performance across various operating conditions.

13687-13624 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, enhancing longevity and reducing maintenance needs.

Application

Industrial Uses of 13687-13624 Bearing
13687-13624 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 13687-13624 Bearing a Preferred Choice?
In automotive applications, 13687-13624 Bearing fits well in wheel hubs and transmissions, thanks to its precise inch sizing. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 13687-13624 Bearing
For industrial fans and pumps, 13687-13624 Bearing offers reliable performance with its standard radial clearance. Its steel cage provides stability during high-speed operations.

Automotive vs Aerospace: Applications of 13687-13624 Bearing
In automotive systems, 13687-13624 Bearing supports wheel assemblies, while in aerospace, it’s suited for auxiliary gearboxes. The ABEC-1 rating ensures consistent precision.

Perfect Fit for Automation: 13687-13624 Bearing
13687-13624 Bearing works well in robotic arms and conveyor systems, where its combined load capacity is beneficial. The temperature range makes it adaptable to various working conditions.
