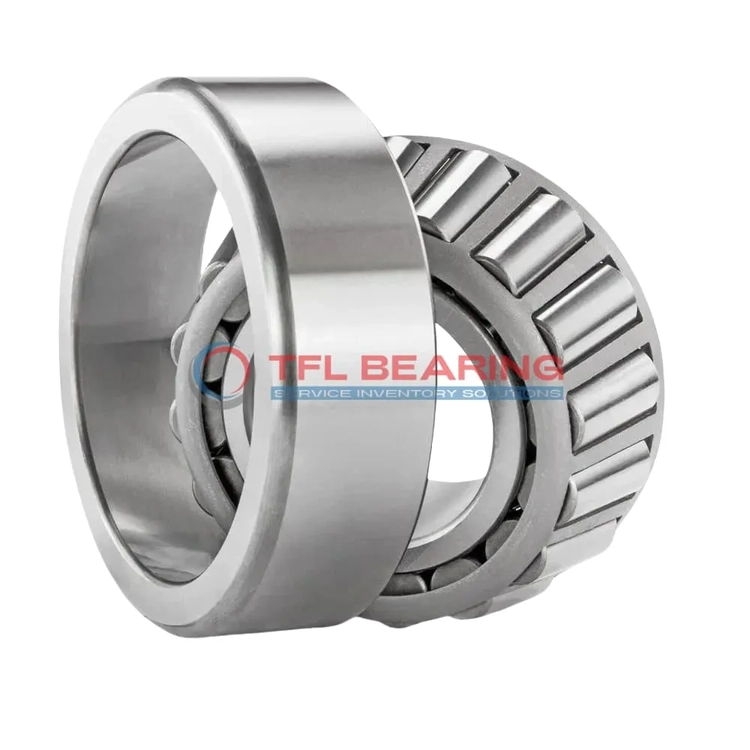

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13623X

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13623X

The 13687-13623X is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing just 0.7lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13687-13623X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 0.8831"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7269"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8831"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.02"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.83"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13687
  • Cup Part Number 13623X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

Performance Features of 13687-13623X Bearing

13687-13623X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15,100 lbf, ensuring reliable performance in various applications.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

How Is 13687-13623X Bearing Engineered for Reliability?

13687-13623X Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its effective centre location of -0.12″ enhances stability during use.
This bearing meets ABEC-1 standards, balancing precision and cost-effectiveness.

Built for Durability: 13687-13623X Bearing

13687-13623X Bearing’s robust chrome steel components withstand heavy loads and demanding conditions.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With a static radial load capacity of 15,300 lbf, it offers reliable performance in stationary applications.
Its open design allows for easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of 13687-13623X Bearing
13687-13623X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes 13687-13623X Bearing a Preferred Choice?
In automotive applications, 13687-13623X Bearing fits well in wheel hubs and drivetrains, offering reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 13687-13623X Bearing
For industrial conveyor systems, 13687-13623X Bearing provides smooth operation even under constant stress. The open design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of 13687-13623X Bearing
While 13687-13623X Bearing excels in automotive wheel assemblies, it’s also suitable for aerospace landing gear components. Its precise tolerances ensure consistent performance in both high and low-speed scenarios.

Where Is 13687-13623X Bearing Used?
You’ll often find 13687-13623X Bearing in mining equipment, where its robust design handles extreme loads. The steel cage adds extra strength, making it a dependable choice for heavy industries.
