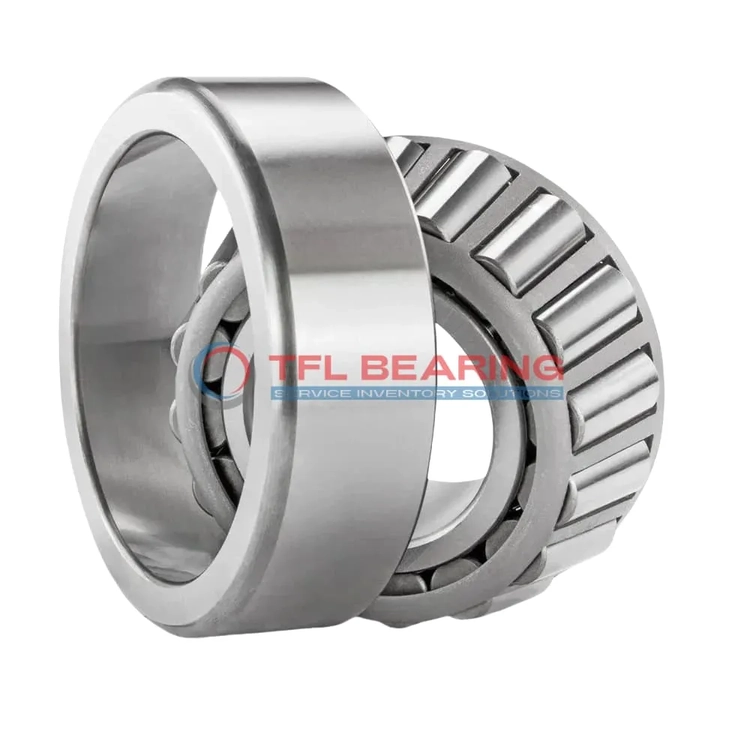

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13620

TS (Single Row Tapered Roller Bearings) (Imperial) 13687-13620

The 13687-13620 is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. It’s ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

The standard radial clearance ensures smooth operation, and its ABEC-1 rating provides reliable precision. The tapered roller design helps distribute loads evenly for longer service life.

Perfect for applications requiring durability and performance, such as automotive or heavy equipment. Its simple maintenance and sturdy build make it a practical choice for engineers and technicians alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13687-13620
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 0.75"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.83"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.44"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13687
  • Cup Part Number 13620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 13687-13620 Bearing

13687-13620 Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 15,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

13687-13620 Bearing’s standard radial clearance allows for smooth operation in most industrial settings.
Its ABEC-1 rating ensures consistent precision for general applications.

The tapered roller design efficiently handles both radial and thrust loads.
This makes 13687-13620 Bearing a versatile choice for many mechanical systems.

Maintenance is straightforward, as it requires regular lubrication for optimal performance.
The open design simplifies inspection and servicing when needed.

Application

Industrial Uses of 13687-13620 Bearing
13687-13620 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 13687-13620 Bearing Used?
You’ll often find 13687-13620 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 13687-13620 Bearing
13687-13620 Bearing excels in industrial gearboxes, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 13687-13620 Bearing
In automotive systems, 13687-13620 Bearing supports high-load components like axles, while in aerospace, its precision helps with landing gear mechanisms. The ABEC-1 rating ensures consistent performance across both fields.

Practical Applications of 13687-13620 Bearing
13687-13620 Bearing is a solid choice for conveyor systems, where its tapered rollers reduce friction and wear. The standard radial clearance option makes it versatile for various industrial setups.
