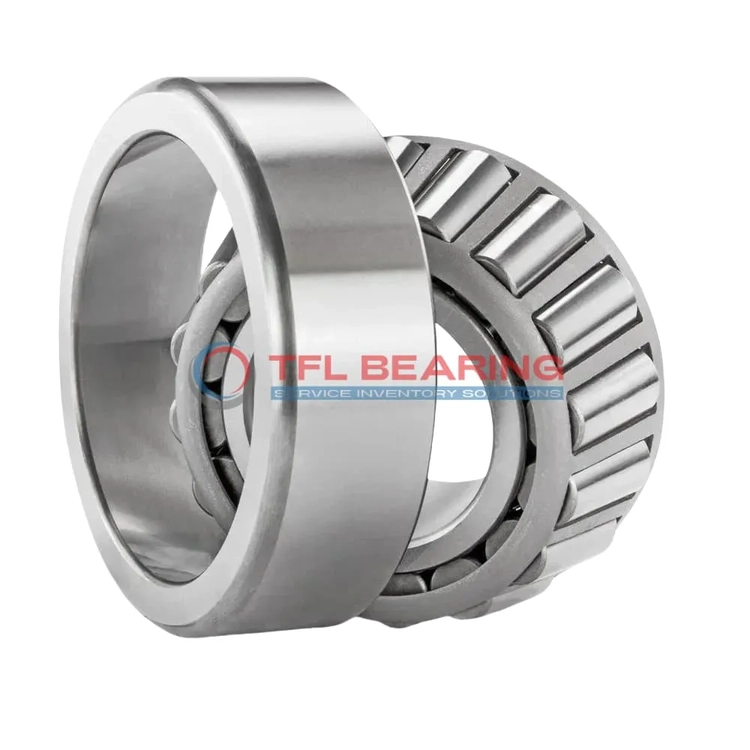

TS (Single Row Tapered Roller Bearings) (Imperial) 13686-13621

TS (Single Row Tapered Roller Bearings) (Imperial) 13686-13621

The 13686-13621 is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13686-13621
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 1.0313"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0313"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0313"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.79"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.3"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13686
  • Cup Part Number 13621
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 13686-13621 Bearing

13686-13621 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15,100 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

13686-13621 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its tapered roller design efficiently handles both radial and thrust loads.

The open seal type simplifies maintenance while ensuring proper lubrication.
Weighing just 0.8 lb, it balances durability with manageable size for imperial system applications.

Application

Industrial Uses of 13686-13621 Bearing
13686-13621 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 13686-13621 Bearing Used?
You’ll often find 13686-13621 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American and British vehicle models.

Built for Heavy-Duty Use: 13686-13621 Bearing
13686-13621 Bearing excels in industrial settings like conveyor systems, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 13686-13621 Bearing
In automotive systems, 13686-13621 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear mechanisms. The ABEC-1 rating ensures reliable performance in both fields.

Perfect Fit for Automation: 13686-13621 Bearing
13686-13621 Bearing works well in automated machinery, such as robotic arms, due to its precise tapered roller design. The steel cage adds stability during high-speed operations.
