TS (Single Row Tapered Roller Bearings) (Imperial) 13685A-13620

TS (Single Row Tapered Roller Bearings) (Imperial) 13685A-13620

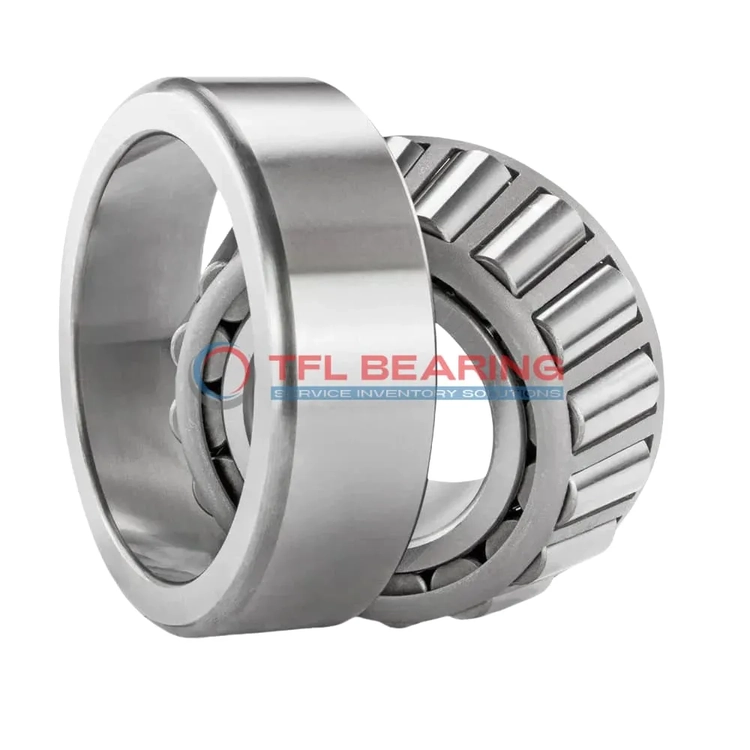

The 13685A-13620 is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13685A-13620
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 0.75"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.73"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.44"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13685A
  • Cup Part Number 13620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 13685A-13620 Bearing

13685A-13620 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15100 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse operating conditions.

13685A-13620 Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for general industrial use.

The tapered roller design efficiently handles both radial and thrust loads.
This makes 13685A-13620 Bearing suitable for a wide range of machinery applications.

Application

Industrial Uses of 13685A-13620 Bearing
The 13685A-13620 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 13685A-13620 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 13685A-13620 Bearing’s open design allows for easy lubrication, extending service life in high-use settings. The steel cage adds extra strength, making it suitable for continuous operation.

Why Is 13685A-13620 Bearing Essential in Machinery?
The 13685A-13620 Bearing excels in applications requiring precise radial and thrust load management, such as gearboxes and pumps. Its standard radial clearance offers flexibility for different operational needs.

In mining equipment, 13685A-13620 Bearing’s robust design withstands harsh conditions, reducing downtime. The ABEC-1 rating ensures consistent performance without over-engineering for general industrial use.

Built for Heavy-Duty Use: 13685A-13620 Bearing
The 13685A-13620 Bearing is ideal for forklifts and other material handling equipment, where its tapered rollers distribute loads evenly. The chrome steel rollers resist wear, even under frequent stress.

For power transmission systems, 13685A-13620 Bearing’s compatibility with Timken models makes it a versatile choice. Its temperature range suits both indoor and outdoor applications.

Automotive vs Aerospace: Applications of 13685A-13620 Bearing
In automotive settings, 13685A-13620 Bearing supports drivetrain components, offering a balance of strength and precision. The inch measurements align with many standard designs.

For aerospace ground equipment, 13685A-13620 Bearing provides reliable performance in auxiliary systems. Its compliance with RoHS and REACH standards ensures environmental safety.
