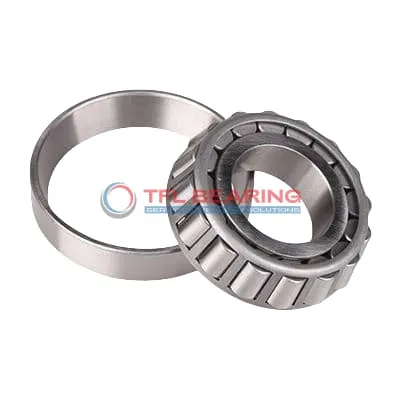

TS (Single Row Tapered Roller Bearings) (Imperial) 09070-09196

TS (Single Row Tapered Roller Bearings) (Imperial) 09070-09196

The 09070-09196 is a single-row tapered roller bearing with a 0.695″ bore and 1.938″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 9630 lbf radially and 1140 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.5 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 09070-09196
  • Brand TFL
  • Interchangeable Timken
  • Size 0.695" x 1.938" x 0.9063"
  • Bore Dia 0.695"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.938"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.848"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 0.98"
  • Cone Backface Backing Diameter 1.04"
  • Cup Frontface Backing Diameter 1.79"
  • Cup Backface Backing Diameter 1.63"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 9070
  • Cup Part Number 9196
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 9000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 9630 lbf
  • Static Radial Load 9100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.5 lb

Features

Why Choose 09070-09196 Bearing for Precision Tasks?

09070-09196 Bearing features chrome steel rings and rollers, ensuring durability and precision in combined load applications.
Its dynamic radial load capacity of 9630 lbf makes it suitable for demanding industrial environments.

The tapered roller design of 09070-09196 Bearing provides effective load distribution, reducing wear over time.
With a standard radial clearance, it offers reliable performance across various operating conditions.

09070-09196 Bearing operates within a temperature range of -30° to 110°C, maintaining stability in diverse environments.
Its steel cage keeps rollers aligned, ensuring smooth operation and extended service life.

Designed for easy lubrication, 09070-09196 Bearing simplifies maintenance while enhancing performance.
The ABEC-1 rating ensures consistent precision, making it ideal for a range of mechanical applications.

Application

Industrial Uses of 09070-09196 Bearing
09070-09196 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 09070-09196 Bearing Used?
You’ll find 09070-09196 Bearing in automotive applications such as wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for many American-made vehicles.

Perfect Fit for Automation: 09070-09196 Bearing
In automated production lines, 09070-09196 Bearing supports conveyor rollers and robotic arms, offering smooth operation. The open design allows for easy lubrication, extending its service life in high-use environments.

Automotive vs Aerospace: Applications of 09070-09196 Bearing
While 09070-09196 Bearing excels in car transmissions, it’s also suitable for aerospace auxiliary systems where precision and reliability are key. The steel cage adds extra strength for demanding applications.

Essential Roles of 09070-09196 Bearing
09070-09196 Bearing plays a vital role in industrial fans and pumps, where its tapered rollers manage both radial and axial forces. The standard radial clearance ensures consistent performance across various temperatures.
