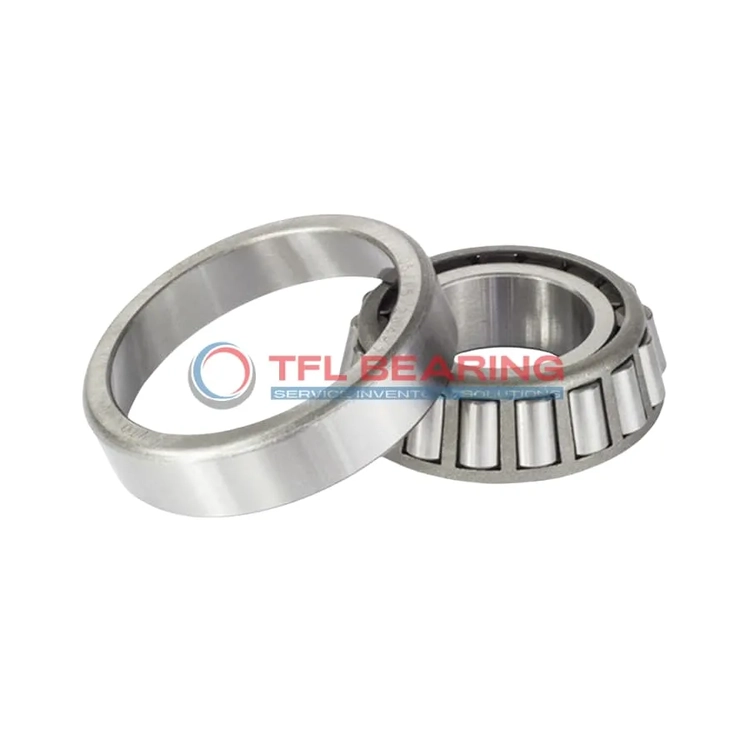

TS (Single Row Tapered Roller Bearings) (Imperial) 09062-09194

TS (Single Row Tapered Roller Bearings) (Imperial) 09062-09194

The 09062-09194 is a single-row tapered roller bearing with a 0.625″ bore and 1.938″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 9630 lbf radially and 1140 lbf thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.5 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 09062-09194
  • Brand TFL
  • Interchangeable Timken
  • Size 0.625" x 1.938" x 0.9063"
  • Bore Dia 0.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.938"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.848"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.140"
  • Cone Frontface Backing Diameter 0.85"
  • Cone Backface Backing Diameter 0.87"
  • Cup Frontface Backing Diameter 1.79"
  • Cup Backface Backing Diameter 1.54"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 9062
  • Cup Part Number 9194
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 9000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 9630 lbf
  • Static Radial Load 9100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.5 lb

Features

Performance Features of 09062-09194 Bearing

09062-09194 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 9630 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

How Does 09062-09194 Bearing Reduce Friction?

09062-09194 Bearing’s tapered roller design minimises friction, allowing smooth operation under heavy loads.
The chrome steel construction ensures durability while maintaining efficient performance.
Its standard radial clearance provides balanced operation, reducing wear over time.
The steel cage keeps rollers properly spaced, further enhancing smooth movement.

Engineered for Precision: 09062-09194 Bearing

09062-09194 Bearing is designed for precise operation with its single-row tapered roller construction.
The chrome steel components provide consistent performance under dynamic radial loads up to 9630 lbf.
Its ABEC-1 rating ensures reliable precision for various industrial applications.
The bearing maintains performance across a wide temperature range from -30° to 110°C.

Steel vs Ceramic Bearings: Strengths of 09062-09194 Bearing

09062-09194 Bearing uses chrome steel for both rings and rollers, offering excellent strength and durability.
This construction provides a cost-effective solution compared to ceramic alternatives.
The bearing handles dynamic radial loads up to 9630 lbf, making it suitable for demanding applications.
Its steel cage ensures proper roller alignment, contributing to long service life.

Application

Industrial Uses of 09062-09194 Bearing
09062-09194 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 09062-09194 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 09062-09194 Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 09062-09194 Bearing Used?
You’ll often find 09062-09194 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles heavy loads effortlessly. The standard radial clearance ensures smooth operation even in dusty environments.

In mining equipment, 09062-09194 Bearing’s ability to withstand high radial and thrust loads makes it a reliable choice for crushers and screens. The ABEC-1 rating balances precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: 09062-09194 Bearing
09062-09194 Bearing excels in forestry equipment like log splitters, where its tapered rollers manage intense shock loads. The chrome steel rollers and rings provide long-lasting performance in rugged conditions.

For railway applications, 09062-09194 Bearing’s effective center location helps maintain alignment in axle boxes. Its temperature range of -30° to 110°C ensures reliability in varying climates.

Automotive vs Aerospace: Applications of 09062-09194 Bearing
In automotive settings, 09062-09194 Bearing is ideal for drivetrain components, offering a balance of strength and precision. The interchangeable Timken design simplifies maintenance and replacements.

For aerospace ground support equipment, 09062-09194 Bearing’s standard radial clearance and lubrication requirements make it suitable for load-handling systems. Its weight of 0.5 lb strikes a good balance between durability and portability.
