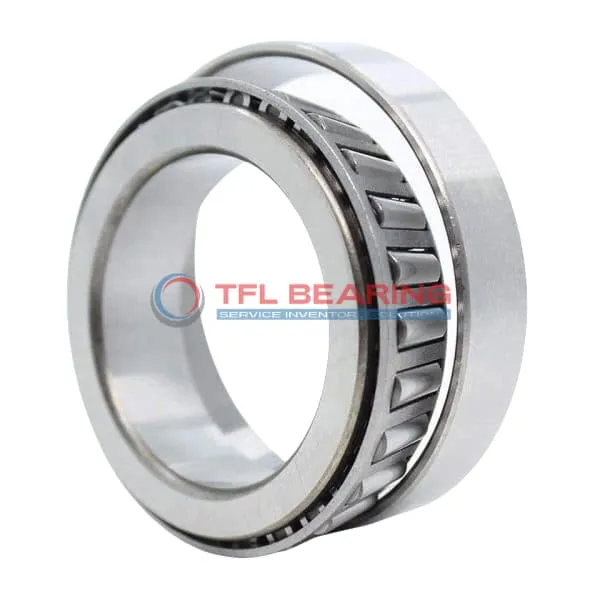

TS (Single Row Tapered Roller Bearings) (Imperial) 07087-07210X

TS (Single Row Tapered Roller Bearings) (Imperial) 07087-07210X

The 07087-07210X is a single-row tapered roller bearing with a 0.875″ bore and 2″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 6540 lbf radially and 1170 lbf thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for automotive or industrial uses where combined loads are common, such as wheel hubs or gearboxes.

Weighing just 0.3lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07087-07210X
  • Brand TFL
  • Interchangeable Timken
  • Size 0.875" x 2" x 0.591"
  • Bore Dia 0.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.591"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.06"
  • Cone Backface Backing Diameter 1.12"
  • Cup Frontface Backing Diameter 1.89"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7087
  • Cup Part Number 07210X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Performance Features of 07087-07210X Bearing

07087-07210X Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 6540 lbf, making it suitable for demanding industrial applications.
The single-row tapered roller design ensures efficient load distribution and smooth operation.
With a standard radial clearance, it provides reliable performance in various operating conditions.

How Is 07087-07210X Bearing Engineered for Reliability?

07087-07210X Bearing features a steel cage that maintains roller alignment, reducing friction and wear.
The chrome steel construction enhances durability, even in high-load environments.
Its effective center location of -0.11″ ensures precise operation and stability.
Designed for a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Built for Durability: 07087-07210X Bearing

07087-07210X Bearing’s tapered roller design handles both radial and thrust loads efficiently.
The chrome steel rollers and rings provide excellent resistance to wear and fatigue.
With a static radial load capacity of 6650 lbf, it ensures long-lasting performance.
Its standard radial clearance allows for smooth operation in various applications.

Steel vs Ceramic Bearings: Strengths of 07087-07210X Bearing

07087-07210X Bearing uses chrome steel for both rings and rollers, offering a balance of strength and cost-effectiveness.
The steel cage ensures proper roller alignment, enhancing the bearing’s lifespan.
With a dynamic thrust rating of 1170 lbf, it performs well under combined loads.
Its ABEC-1 rating guarantees consistent precision in industrial applications.

Application

Industrial Uses of 07087-07210X Bearing
07087-07210X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 07087-07210X Bearing Used?
You’ll often find 07087-07210X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for American and British vehicle models.

Built for Heavy-Duty Use: 07087-07210X Bearing
07087-07210X Bearing excels in industrial gearboxes, providing smooth operation under high loads. The steel cage adds strength, making it suitable for long-term use in harsh conditions.

Automotive vs Aerospace: Applications of 07087-07210X Bearing
In automotive systems, 07087-07210X Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary equipment. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 07087-07210X Bearing
07087-07210X Bearing is ideal for automated conveyor systems, where precision and reliability are key. The standard radial clearance allows for smooth operation in high-speed scenarios.
