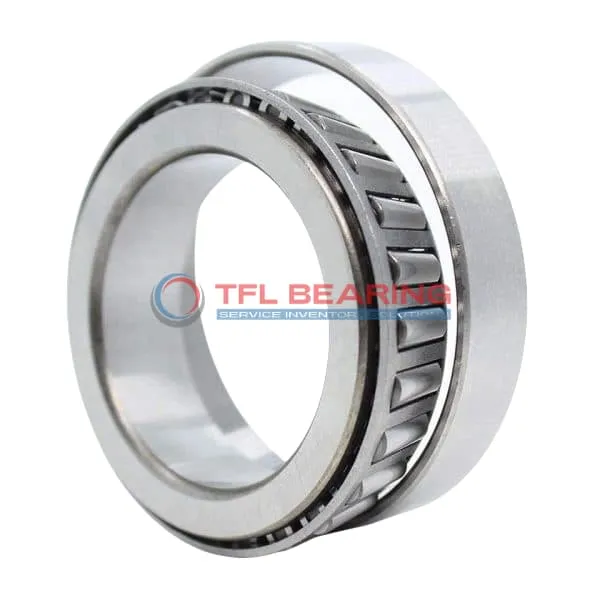

TS (Single Row Tapered Roller Bearings) (Imperial) 07079-07205

TS (Single Row Tapered Roller Bearings) (Imperial) 07079-07205

The 07079-07205 is a single-row tapered roller bearing with a 0.7874″ bore and 2.0472″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 6540 lbf radial and 1170 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for gearboxes, wheel hubs, or industrial machinery where combined loads are present.

Weighing just 0.4 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07079-07205
  • Brand TFL
  • Interchangeable Timken
  • Size 0.7874" x 2.0472" x 0.591"
  • Bore Dia 0.7874"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.0472"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.591"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.02"
  • Cone Backface Backing Diameter 1.08"
  • Cup Frontface Backing Diameter 1.91"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7079
  • Cup Part Number 7205
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.4 lb

Features

Performance Features of 07079-07205 Bearing

07079-07205 Bearing is crafted from chrome steel for both rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 6540 lbf, making it suitable for demanding industrial applications.

The single-row tapered roller design provides effective load distribution, enhancing performance.
With a standard radial clearance, it offers reliable operation in various conditions.

07079-07205 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing friction and wear over time.

This bearing requires regular lubrication to maintain optimal performance.
Its ABEC-1 rating ensures consistent precision for general industrial use.

Application

Industrial Uses of 07079-07205 Bearing
The 07079-07205 Bearing is commonly used in heavy machinery like conveyor systems and agricultural equipment, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.
In automotive applications, 07079-07205 Bearing fits well in wheel hubs and differentials, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for Timken bearings in many vehicles.
For industrial gearboxes, 07079-07205 Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The standard radial clearance offers flexibility for different operational needs.

Where Is 07079-07205 Bearing Used?
You’ll often find 07079-07205 Bearing in construction equipment, where its robust design handles heavy radial and thrust loads. The steel cage adds stability, making it suitable for rough conditions.
In manufacturing setups, this bearing supports machinery like presses and lathes, ensuring smooth rotation under stress. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 07079-07205 Bearing
The 07079-07205 Bearing excels in mining equipment, where its tapered rollers manage uneven loads and vibrations. The chrome steel rollers resist wear, even in abrasive environments.
For forestry machinery, this bearing’s standard radial clearance accommodates thermal expansion, maintaining performance in varying temperatures. Its compatibility with Timken parts simplifies maintenance.

Automotive vs Industrial: Applications of 07079-07205 Bearing
In trucks, 07079-07205 Bearing supports axles and transmissions, handling both radial and thrust forces. The inch measurements align with many North American vehicle standards.
For factory equipment, this bearing’s dynamic load capacity ensures reliability in continuous operation. The open seal design simplifies re-greasing during routine maintenance.

Key Fields for 07079-07205 Bearing
The 07079-07205 Bearing is a go-to for farm machinery like tractors, where its combined load capacity handles uneven terrain stresses. The steel cage prevents roller misalignment under shock loads.
In material handling systems, this bearing’s tapered design reduces friction, improving efficiency in conveyor belts and lifts. Its temperature range suits both indoor and outdoor applications.
