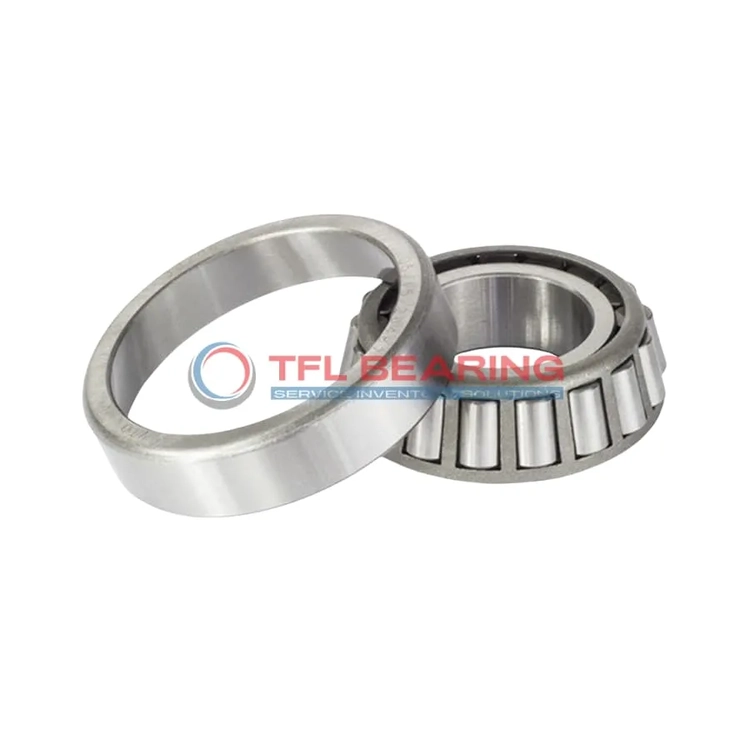

TS (Single Row Tapered Roller Bearings) (Imperial) 03066X-03162

TS (Single Row Tapered Roller Bearings) (Imperial) 03066X-03162

The 03066X-03162 is a single-row tapered roller bearing with a 0.6693″ bore and 1.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads with a dynamic radial capacity of 5400 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability under stress. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance and ABEC-1 rating, it suits applications like vehicle axles or industrial gearboxes where reliability is key. Weighing just 0.200 lb, it balances strength and portability.

Compliant with RoHS and REACH standards, it’s a safe option for various mechanical setups. The tapered rollers provide stable performance under both radial and thrust loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 03066X-03162
  • Brand TFL
  • Interchangeable Timken
  • Size 0.6693" x 1.625" x 0.5626"
  • Bore Dia 0.6693"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.578"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.5626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 0.83"
  • Cone Backface Backing Diameter 0.85"
  • Cup Frontface Backing Diameter 1.50"
  • Cup Backface Backing Diameter 1.34"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance -0.01"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 03066X
  • Cup Part Number 3162
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 5400 lbf
  • Static Radial Load 4780 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 745 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.200 lb

Features

Performance Features of 03066X-03162 Bearing

03066X-03162 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 5400 lbf, ensuring reliable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environmental conditions.

03066X-03162 Bearing requires lubrication, but its robust design minimises maintenance needs.
The standard radial clearance option provides flexibility for different installation requirements.

Application

Industrial Uses of 03066X-03162 Bearing
03066X-03162 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 03066X-03162 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many American-made vehicles.

For industrial conveyors, 03066X-03162 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The standard radial clearance offers flexibility for different operational needs.

Where Is 03066X-03162 Bearing Used?
You’ll often find 03066X-03162 Bearing in agricultural machinery, where its robust design handles rough conditions. The steel cage adds extra strength for long-term use.

In manufacturing plants, 03066X-03162 Bearing supports rotating shafts in production lines. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Built for Heavy-Duty Use: 03066X-03162 Bearing
03066X-03162 Bearing excels in mining equipment, where its tapered rollers manage heavy radial and thrust loads. The chrome steel rollers resist wear even in abrasive environments.

For truck axles, 03066X-03162 Bearing provides stable support during long hauls. The standard lubrication requirement makes maintenance straightforward for fleet managers.

Automotive vs Aerospace: Applications of 03066X-03162 Bearing
In automotive systems, 03066X-03162 Bearing is ideal for transmissions, handling both speed and load variations. The inch measurements suit many aftermarket repair kits.

While not typically used in aerospace, 03066X-03162 Bearing serves well in ground support equipment. Its temperature range covers most operational conditions without special modifications.
