Super Precision Angular Contact Ball Bearings S7209 ACD/P4ADBAVP020

Super Precision Angular Contact Ball Bearings S7209 ACD/P4ADBAVP020

The S7209 ACD/P4ADBAVP020 is a super precision angular contact ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 14918 lbf and operates smoothly at speeds up to 46000 RPM.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The 25° contact angle and matched arrangement (2 bearings DB) provide excellent stability for precision applications.

This bearing works well in temperatures from -30°C to 110°C and comes preloaded for extra light performance. Ideal for high-speed spindles or machine tools where accuracy is crucial.

Weighing 0.84kg, it’s a robust choice for demanding environments. Compliant with P4A tolerance class for precise operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7209 ACD/P4ADBAVP020
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 12.7 mm
  • Ball Qty 14
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 14918 lbf
  • Static Radial Load 13500 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 46000 rpm
  • Weight 0.84 kg

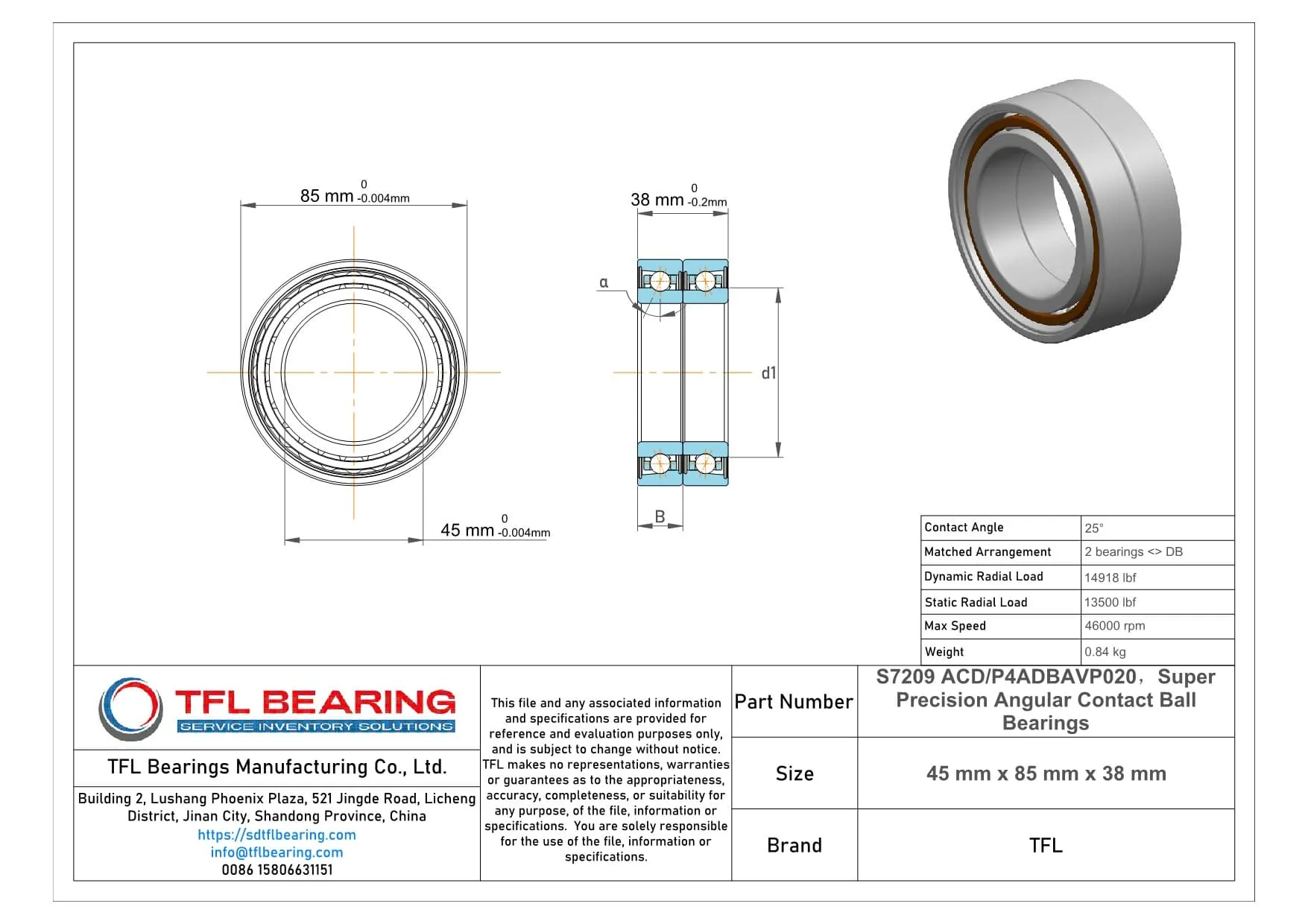

Super Precision Angular Contact Ball Bearings S7209 ACD/P4ADBAVP020 dimension drawing
Download DWG Download PDF
