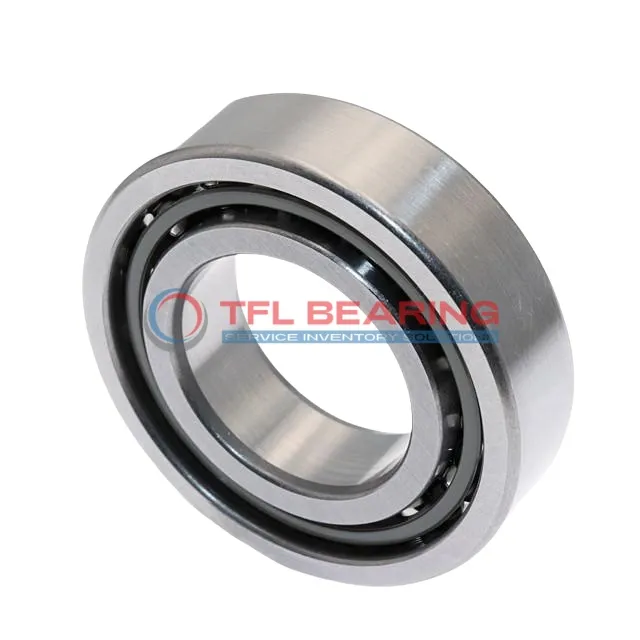

Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADBC

Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADBC

The 7210 ACD/P4ADBC is a super precision angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. Its 25° contact angle efficiently manages combined radial and axial loads.

This matched pair of bearings (DB arrangement) offers moderate preload for smooth operation, handling dynamic radial loads up to 15502 lbf. It spins exceptionally well at speeds up to 46000 RPM while maintaining precision.

The phenolic cage reduces friction and wear, enhancing longevity. Open design allows easy relubrication, suitable for temperatures from -30°C to 110°C.

Ideal for high-precision applications like machine tool spindles or robotics where accuracy and speed matter. Weighing 0.92kg, it’s a robust yet manageable solution for demanding setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7210 ACD/P4ADBC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 12.7 mm
  • Ball Qty 15
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 15502 lbf
  • Static Radial Load 14738 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 46000 rpm
  • Weight 0.92 kg
Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADBC dimension drawing
Download DWG Download PDF

Features

Performance Features of 7210 ACD/P4ADBC Bearing

7210 ACD/P4ADBC Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and consistent performance under high radial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 15502 lbf, it handles demanding conditions reliably.

7210 ACD/P4ADBC Bearing operates at speeds up to 46,000 rpm, balancing precision and efficiency.
Its moderate preload (Class C) ensures stability, making it suitable for high-precision machinery.

The matched arrangement of two bearings (DB) provides enhanced rigidity and load-sharing capabilities.
Its open design allows for easy lubrication, extending service life in varied temperature conditions.

Application

Industrial Uses of 7210 ACD/P4ADBC Bearing
The 7210 ACD/P4ADBC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. Its moderate preload and P4A tolerance class make it suitable for applications demanding tight control over radial and axial loads.

In automotive applications, 7210 ACD/P4ADBC Bearing supports high-speed components like turbochargers and electric motor shafts. The matched pair arrangement (DB) enhances stability, reducing vibration in demanding driving conditions.

For robotics, 7210 ACD/P4ADBC Bearing’s phenolic cage and chrome steel construction provide durability in articulated arms and precision joints. The open design allows for efficient lubrication, extending service life in continuous operation.

Medical imaging devices benefit from 7210 ACD/P4ADBC Bearing’s low-noise performance and smooth rotation. Its temperature stability ensures reliable operation in sensitive diagnostic equipment like MRI scanners.

In automation systems, 7210 ACD/P4ADBC Bearing is ideal for CNC machinery and 3D printers, where its high-speed capability (46,000 rpm) and precision alignment are critical. The metric sizing simplifies integration with European and Asian equipment standards.
