Super Precision Angular Contact Ball Bearings 7209 ACD/HCP4ATBTB

Super Precision Angular Contact Ball Bearings 7209 ACD/HCP4ATBTB

The 7209 ACD/HCP4ATBTB is a super precision angular contact ball bearing with a 45mm bore and 85mm outer diameter, designed for high-speed applications. Its 25° contact angle and ceramic balls ensure smooth operation under radial loads up to 19890 lbf.

The matched set of three bearings (arranged TBT) offers stability, while the phenolic cage reduces friction. It spins at speeds up to 41000 RPM and handles temperatures from -30°C to 110°C.

With a P4A tolerance class, this bearing is ideal for precision machinery like spindles or CNC equipment. Its open design allows easy lubrication, and the chrome steel rings provide durability.

Weighing 1.02kg, it’s a robust yet lightweight choice for demanding industrial applications. Interchangeable with SKF bearings, it simplifies replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7209 ACD/HCP4ATBTB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 57 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 12.7 mm
  • Ball Qty 14
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 19890 lbf
  • Static Radial Load 20250 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 41000 rpm
  • Weight 1.02 kg

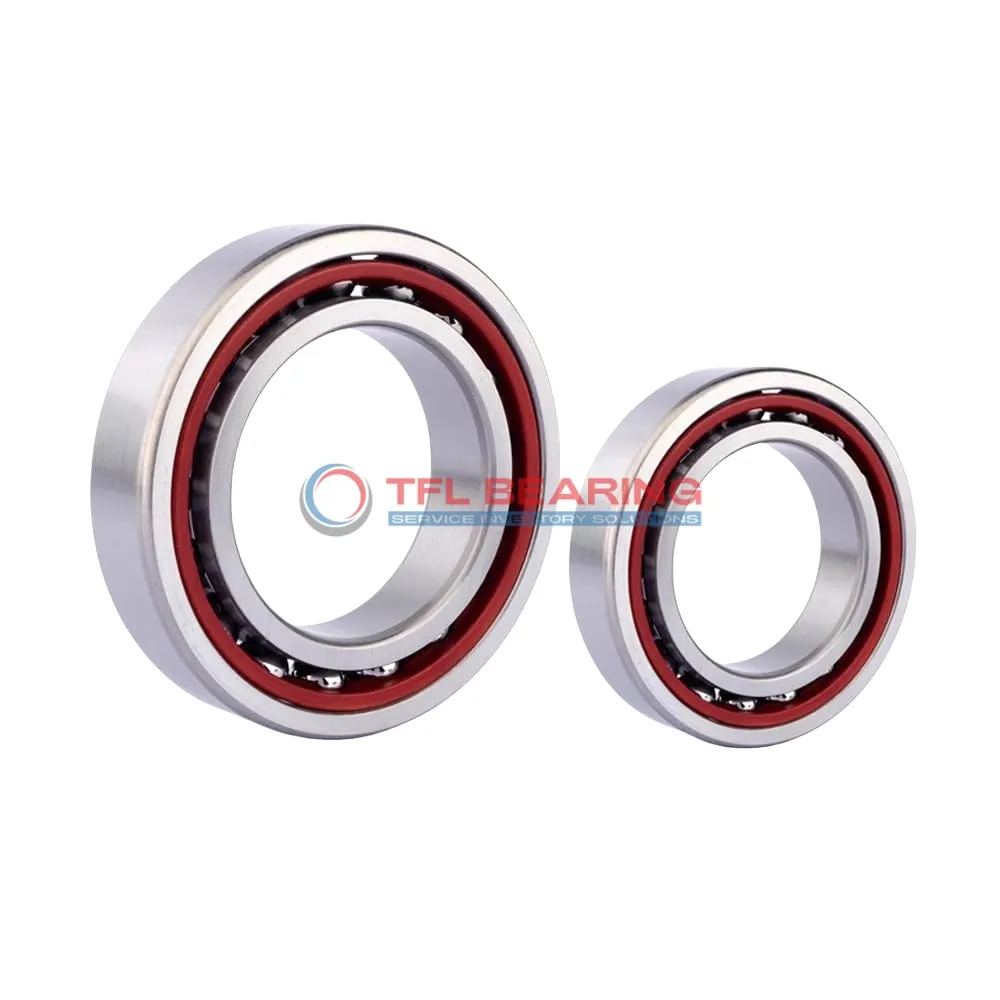

Super Precision Angular Contact Ball Bearings 7209 ACD/HCP4ATBTB dimension drawing
Download DWG Download PDF

Features

Performance Features of 7209 ACD/HCP4ATBTB Bearing

7209 ACD/HCP4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability and reduce friction during high-speed operation.

The phenolic cage ensures smooth movement and alignment of the 14 ceramic balls, minimising wear.
With a dynamic radial load capacity of 19890 lbf, it handles demanding conditions reliably.

7209 ACD/HCP4ATBTB Bearing operates efficiently at speeds up to 41,000 rpm, making it suitable for precision tasks.
Its light preload and P4A tolerance class ensure consistent performance in matched arrangements.

The open design allows easy lubrication, maintaining smooth operation in temperatures from -30°C to 110°C.
This bearing set includes three units, providing balanced performance in complex assemblies.
