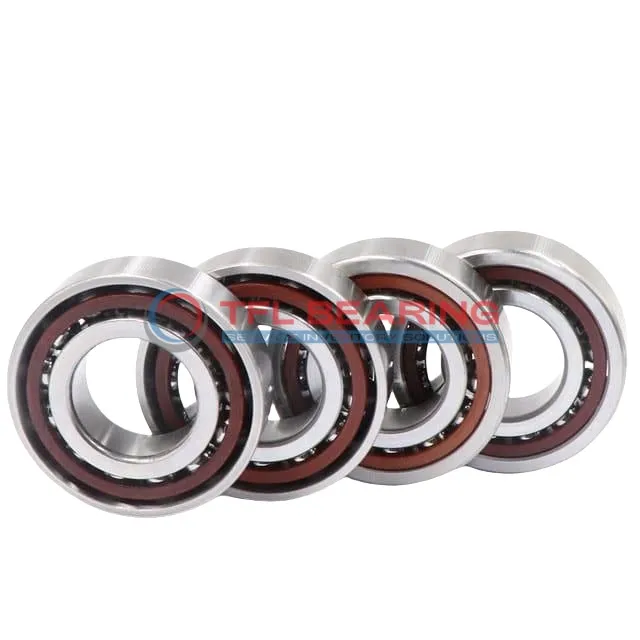

Super Precision Angular Contact Ball Bearings 71813 ACD/P4DGB

Super Precision Angular Contact Ball Bearings 71813 ACD/P4DGB

The 71813 ACD/P4DGB is a super precision angular contact ball bearing with a 65mm bore and 85mm outer diameter, crafted from high-quality chrome steel. Its 25° contact angle and open design ensure smooth operation under radial loads up to 4680 lbf.

This bearing spins efficiently at speeds up to 36,000 RPM and works in temperatures from -30°C to 110°C. The phenolic cage reduces friction, while the universal matching design allows flexible arrangements like back-to-back or face-to-face.

With a lightweight build at just 0.25kg, it’s ideal for high-precision applications like machine tool spindles or robotics. Compliant with P4 tolerance standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71813 ACD/P4DGB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 5.556 mm
  • Ball Qty 29
  • Contact Angle 25°
  • Tolerance Class P4
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 4680 lbf
  • Static Radial Load 6300 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 36000 rpm
  • Weight 0.25 kg
Super Precision Angular Contact Ball Bearings 71813 ACD/P4DGB dimension drawing
Download DWG Download PDF

Features

How Is 71813 ACD/P4DGB Bearing Engineered for Reliability?

71813 ACD/P4DGB Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.

With a dynamic radial load capacity of 4680 lbf, it performs reliably in high-speed applications.

The universal matching design allows flexible arrangement, enhancing versatility in various setups.

Application

Super Precision Angular Contact Ball Bearings 71813 ACD/P4DGB are commonly used in high-speed machine tools, where their 25° contact angle ensures smooth operation under radial and axial loads. The universal matching design allows for flexible mounting in back-to-back or face-to-face configurations.

In robotics, 71813 ACD/P4DGB supports precise movements in articulated arms, thanks to its P4 tolerance class and phenolic cage. The light preload further enhances positioning accuracy in automated systems.

For aerospace applications, 71813 ACD/P4DGB’s chrome steel construction handles demanding conditions in components like landing gear systems. Its high-speed capability (up to 36,000 rpm) makes it suitable for turbine assemblies as well.

In medical imaging devices, 71813 ACD/P4DGB provides reliable performance with minimal vibration, crucial for maintaining image clarity. The open design simplifies lubrication for extended service life.

Consumer electronics like high-end printers benefit from 71813 ACD/P4DGB’s quiet operation and durability. The metric sizing ensures compatibility with compact designs without sacrificing load capacity.
