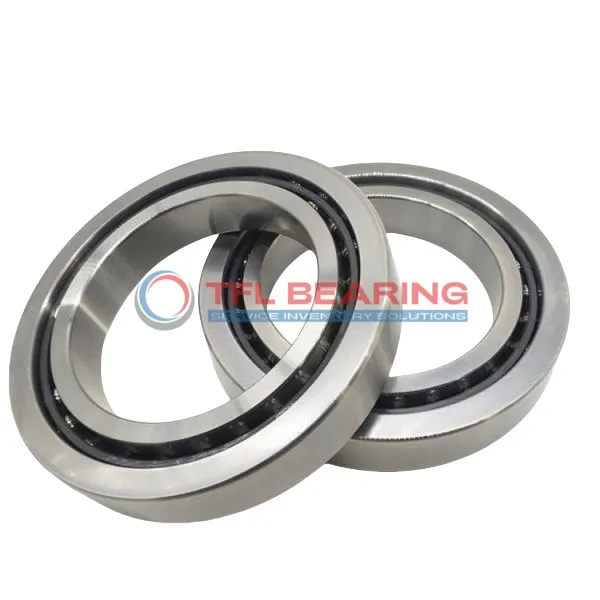

Super Precision Angular Contact Ball Bearings 7048 CD/P4ADGA

Super Precision Angular Contact Ball Bearings 7048 CD/P4ADGA

The 7048 CD/P4ADGA is a super precision angular contact ball bearing with a 240mm bore and 360mm outer diameter, crafted from high-grade chrome steel. It handles radial loads up to 125775 lbf and operates smoothly at speeds up to 7500 RPM.

Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face, ideal for complex setups. The phenolic cage ensures durability while keeping weight manageable at 34.2kg.

This bearing excels in high-precision applications such as machine tool spindles or aerospace systems, where tight tolerances (P4A class) matter. It works reliably in temperatures from -30°C to 110°C.

Pre-lubricated for easy use, it’s interchangeable with SKF bearings for straightforward replacements. The open design simplifies maintenance, and its matched set of two bearings offers versatile mounting options.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7048 CD/P4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 112 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 38.1 mm
  • Ball Qty 22
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 125775 lbf
  • Static Radial Load 220500 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 7500 rpm
  • Weight 34.2 kg
  • Price（$） 581.499
Super Precision Angular Contact Ball Bearings 7048 CD/P4ADGA dimension drawing
Download DWG Download PDF

Features

Why Choose 7048 CD/P4ADGA Bearing for Precision Tasks?

7048 CD/P4ADGA Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with high precision.
Its universal matching design allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.

The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 125775 lbf, it excels in demanding applications.

7048 CD/P4ADGA Bearing operates smoothly at speeds up to 7,500 rpm, maintaining performance in temperatures from -30°C to 110°C.
Its extra light preload (Class A) enhances precision and reduces wear over time.

The open design simplifies lubrication, ensuring consistent performance with minimal maintenance.
Weighing 34.2 kg, it balances robustness with precision engineering for critical tasks.

Application

Industrial Uses of 7048 CD/P4ADGA Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The universal matching feature allows flexible arrangement for different load requirements.

Where Is 7048 CD/P4ADGA Bearing Used?
You’ll often find it in aerospace applications, such as helicopter rotor systems, due to its ability to handle both radial and axial loads. The phenolic cage reduces friction, making it suitable for high-speed operations.

Built for Heavy-Duty Use: 7048 CD/P4ADGA Bearing
In large industrial pumps, this bearing’s chrome steel construction provides long-lasting performance under heavy loads. Its extra-light preload ensures smooth operation without excessive wear.

Automotive vs Aerospace: Applications of 7048 CD/P4ADGA Bearing
While it supports gearbox systems in high-performance cars, its precision also makes it ideal for aircraft landing gear mechanisms. The P4A tolerance class guarantees consistent performance in both environments.

Perfect Fit for Automation: 7048 CD/P4ADGA Bearing
Robotic arms benefit from its low-friction design, enabling precise movements in automated assembly lines. The tandem arrangement option further enhances load capacity for repetitive tasks.
