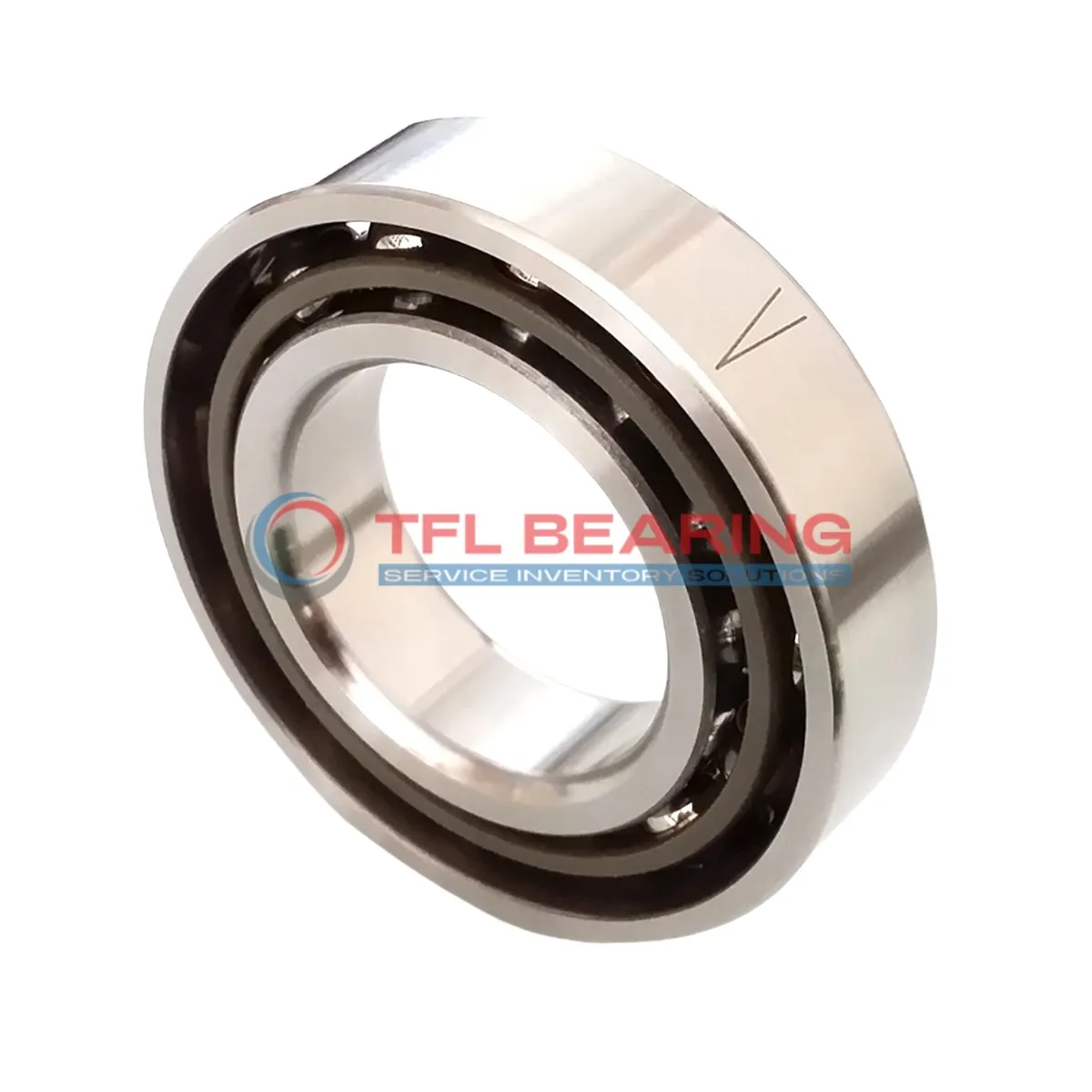

Super Precision Angular Contact Ball Bearings 7044 ACD/P4ADGA

Super Precision Angular Contact Ball Bearings 7044 ACD/P4ADGA

The 7044 ACD/P4ADGA is a super precision angular contact ball bearing with a 220mm bore and 340mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 117000 lbf and operates smoothly at speeds up to 6300 RPM.

Its 25° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face. The phenolic cage ensures durability while keeping the bearing lightweight.

With an extra light preload (Class A), it’s ideal for high-precision applications like machine tool spindles or robotics. The open design simplifies lubrication, and it works in temperatures from -30°C to 110°C.

Weighing 32.1kg, this bearing comes in a matched set of two for balanced performance. Compliant with P4A tolerance standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7044 ACD/P4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 220 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 112 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 38.1 mm
  • Ball Qty 21
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 117000 lbf
  • Static Radial Load 198000 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 6300 rpm
  • Weight 32.1 kg
Super Precision Angular Contact Ball Bearings 7044 ACD/P4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7044 ACD/P4ADGA Bearing

7044 ACD/P4ADGA Bearing is crafted with a 25° contact angle, ideal for handling both radial and axial loads efficiently.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 117,000 lbf, it performs reliably in high-precision applications.

The universal matching design allows flexible arrangements like back-to-back or face-to-face setups.

Application

Industrial Uses of 7044 ACD/P4ADGA Bearing
7044 ACD/P4ADGA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The universal matching feature allows for flexible arrangements, making it suitable for complex setups.

In the automotive sector, 7044 ACD/P4ADGA Bearing supports high-performance gearboxes and differential systems, handling both radial and axial loads efficiently. Its phenolic cage reduces friction, enhancing longevity in demanding conditions.

For robotics, 7044 ACD/P4ADGA Bearing provides reliable motion control in articulated arms and precision actuators. The P4A tolerance class ensures minimal vibration, crucial for smooth operation in automated systems.

Medical imaging devices benefit from 7044 ACD/P4ADGA Bearing’s consistent performance, particularly in MRI machines where stability is key. The chrome steel construction offers durability in sterile environments.

In aerospace applications, 7044 ACD/P4ADGA Bearing is trusted for its ability to handle high speeds and loads in aircraft landing gear systems. The extra-light preload ensures optimal performance under varying pressures.
