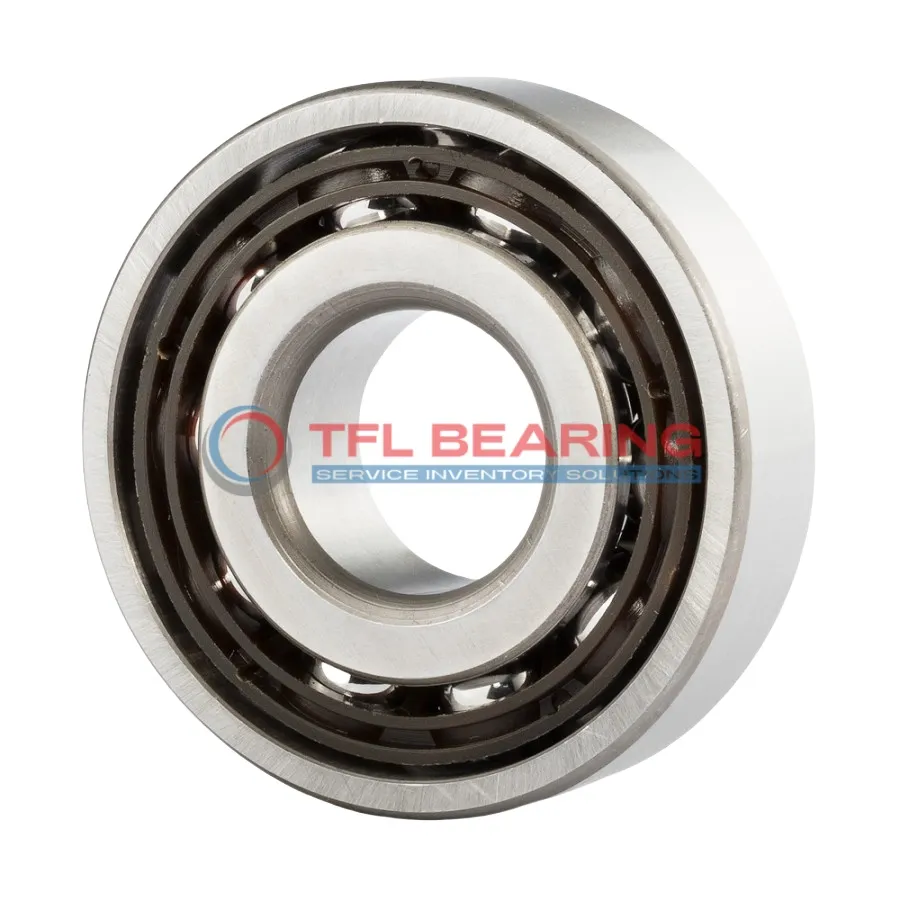

Super Precision Angular Contact Ball Bearings 7013 CE/P4BVG275

Super Precision Angular Contact Ball Bearings 7013 CE/P4BVG275

The 7013 CE/P4BVG275 is a super precision angular contact ball bearing with a 65mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4568 lbf and operates smoothly at speeds up to 19,000 RPM.

With a 15° contact angle and phenolic cage, it offers excellent stability and low friction. The open design allows for easy lubrication, ensuring long service life even in demanding conditions.

This bearing is ideal for high-precision applications like machine tool spindles or robotics, where accuracy and reliability are key. Its P4 tolerance class ensures consistent performance.

Weighing 0.43kg, it’s a robust yet lightweight option. Compatible with SKF bearings, it’s a versatile choice for replacements or upgrades. Suitable for temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7013 CE/P4BVG275
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 18 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 8.731 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 4568 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 19000 rpm
  • Weight 0.43 kg
  • Price（$） 428.913
Super Precision Angular Contact Ball Bearings 7013 CE/P4BVG275 dimension drawing
Download DWG Download PDF

Features

Performance Features of 7013 CE/P4BVG275 Bearing

7013 CE/P4BVG275 Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 4568 lbf.

The phenolic cage ensures smooth operation, even at high speeds of 19,000 rpm.
Precision P4 tolerance class guarantees reliable performance in demanding conditions.

7013 CE/P4BVG275 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design and lubrication compatibility reduce maintenance needs.

Application

Industrial Uses of 7013 CE/P4BVG275 Bearing
7013 CE/P4BVG275 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The phenolic cage reduces friction, making it suitable for high-speed operations.

In automotive applications, 7013 CE/P4BVG275 Bearing supports components like wheel hubs and transmissions, thanks to its durable chrome steel construction. The P4 tolerance class ensures consistent performance in demanding conditions.

For automation systems, 7013 CE/P4BVG275 Bearing is ideal for robotic arms and CNC machinery, where its matched arrangement options provide flexibility. The open seal type allows for easy lubrication and maintenance.

What Makes 7013 CE/P4BVG275 Bearing a Preferred Choice?
7013 CE/P4BVG275 Bearing excels in medical imaging devices, offering reliable performance with minimal vibration. Its high-speed capability and temperature resistance make it a dependable choice for critical applications.

Built for Heavy-Duty Use: 7013 CE/P4BVG275 Bearing
7013 CE/P4BVG275 Bearing is well-suited for industrial fans and pumps, handling both radial and thrust loads efficiently. The lubricated design ensures long service life even in continuous operation.
