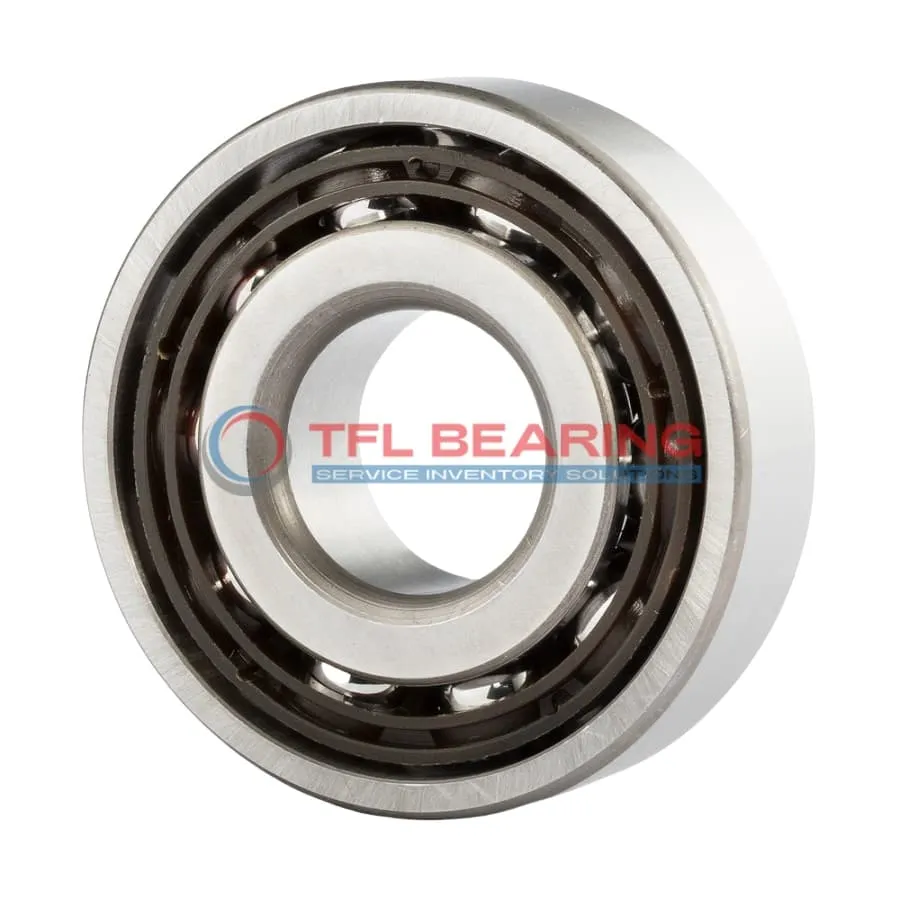

Super Precision Angular Contact Ball Bearings 7013 CD/P4ADT

Super Precision Angular Contact Ball Bearings 7013 CD/P4ADT

The 7013 CD/P4ADT is a super precision angular contact ball bearing with a 65mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 15210 lbf and operates smoothly at speeds up to 24000 RPM.

Its 15° contact angle and matched arrangement (2 bearings) provide excellent stability for angular loads. The phenolic cage ensures quiet and durable performance, even in demanding conditions.

Preloaded for precision, this bearing is ideal for high-speed applications like machine tool spindles or precision instruments. It works reliably in temperatures from -30°C to 110°C.

Weighing 0.86kg, it’s a robust yet manageable choice for industrial use. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7013 CD/P4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 36 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 11.112 mm
  • Ball Qty 20
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 15210 lbf
  • Static Radial Load 16875 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 24000 rpm
  • Weight 0.86 kg
Super Precision Angular Contact Ball Bearings 7013 CD/P4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of 7013 CD/P4ADT Bearing

7013 CD/P4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 15210 lbf.

Its phenolic cage ensures smooth operation at high speeds, reaching up to 24,000 rpm.
The matched arrangement of two bearings improves stability and precision in demanding setups.

With a temperature range of -30°C to 110°C, 7013 CD/P4ADT Bearing performs reliably in varied conditions.
The P4A tolerance class guarantees high precision, making it suitable for critical applications.

Application

Industrial Uses of 7013 CD/P4ADT Bearing
7013 CD/P4ADT Bearing is commonly used in high-precision machine tools, where its angular contact design handles both radial and axial loads efficiently. The matched arrangement ensures stability in demanding industrial environments.

What Makes 7013 CD/P4ADT Bearing a Preferred Choice?
In automotive applications, 7013 CD/P4ADT Bearing is ideal for gearboxes and wheel hubs, thanks to its high-speed capability and durable chrome steel construction. The phenolic cage reduces friction, enhancing performance under heavy loads.

Perfect Fit for Automation: 7013 CD/P4ADT Bearing
For robotic arms and automated systems, 7013 CD/P4ADT Bearing offers precise movement and low maintenance. Its P4A tolerance class ensures consistent accuracy in repetitive tasks.

Medical vs Industrial: Where 7013 CD/P4ADT Bearing Excels
In medical imaging devices, 7013 CD/P4ADT Bearing provides smooth operation with minimal noise. Its industrial strength also makes it suitable for heavy machinery requiring reliable angular contact support.
