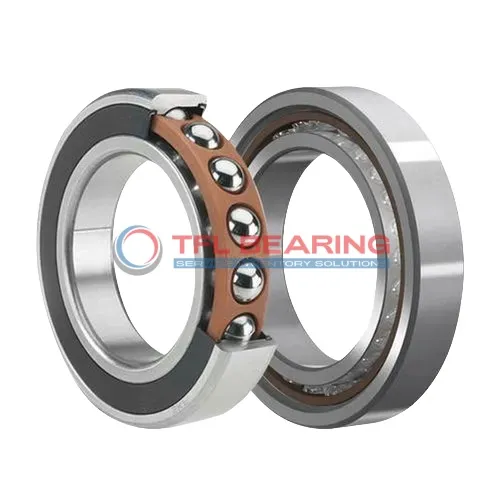

Super Precision Angular Contact Ball Bearings 7010 ACD/P4ADFA

Super Precision Angular Contact Ball Bearings 7010 ACD/P4ADFA

The 7010 ACD/P4ADFA is a super precision angular contact ball bearing with a 50mm bore and 80mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched set of two bearings arranged face-to-face.

This bearing handles radial loads up to 10395 lbf and can spin at speeds up to 46000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures smooth operation and durability.

The open design allows for easy lubrication, while the P4A tolerance class guarantees exceptional precision. Ideal for machine tools or spindle drives where accuracy is key.

Weighing 0.51kg, it operates efficiently in temperatures from -30°C to 110°C. Compatible with SKF bearings, it’s a reliable choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7010 ACD/P4ADFA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 18
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings >< DF
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 10395 lbf
  • Static Radial Load 10462 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 46000 rpm
  • Weight 0.51 kg
Super Precision Angular Contact Ball Bearings 7010 ACD/P4ADFA dimension drawing
Download DWG Download PDF

Features

Why Choose 7010 ACD/P4ADFA Bearing for Precision Tasks?

7010 ACD/P4ADFA Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The matched DF arrangement ensures balanced load distribution, enhancing stability during operation.

With a dynamic radial load capacity of 10,395 lbf, it handles demanding conditions reliably.
The phenolic cage maintains ball alignment, reducing friction and wear.

7010 ACD/P4ADFA Bearing operates at speeds up to 46,000 rpm, suitable for high-performance machinery.
Its chrome steel construction offers durability and resistance to wear.

The extra light preload (Class A) ensures smooth, precise rotation.
This makes it ideal for applications where accuracy and reliability are critical.

7010 ACD/P4ADFA Bearing works within a temperature range of -30°C to 110°C, adapting to various environments.
Its open design allows for easy lubrication, maintaining optimal performance.

Application

Industrial Uses of 7010 ACD/P4ADFA Bearing
7010 ACD/P4ADFA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides excellent stability for heavy cutting operations.

In automotive applications, 7010 ACD/P4ADFA Bearing supports high-speed components like turbochargers and electric motors. Its phenolic cage offers low friction, making it ideal for demanding environments.

For robotics, 7010 ACD/P4ADFA Bearing’s extra light preload allows smooth movement in articulated arms and joints. The P4A tolerance class ensures consistent performance in automated systems.

Medical imaging devices benefit from 7010 ACD/P4ADFA Bearing’s precision and low vibration. The chrome steel construction ensures reliability in critical diagnostic equipment.

In aerospace systems, 7010 ACD/P4ADFA Bearing handles both radial and axial loads in flight control mechanisms. Its high-speed capability makes it suitable for turbine applications.
