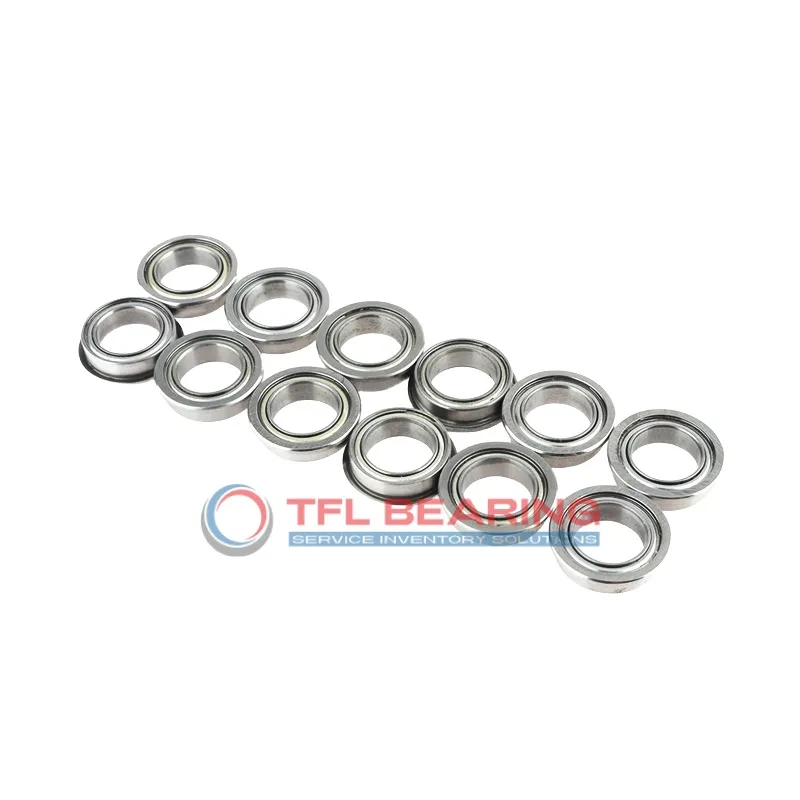

Standard Flanged Ball Bearings SF6907ZZ

Standard Flanged Ball Bearings SF6907ZZ

The SF6907ZZ is a flanged ball bearing with a 35mm bore and 55mm outer diameter, featuring a compact width of 10mm. Made from stainless steel and chrome steel, it offers good resistance to wear and corrosion.

It handles radial loads up to 2205 lbf and can spin at speeds up to 10,800 RPM, making it suitable for fast-moving applications. The shielded design helps keep dirt out while retaining lubrication.

The flange adds stability, preventing misalignment during operation. With a temperature range of -30°C to 110°C, it works well in various environments.

Ideal for small machinery or electric motors where space is limited but performance is key. Compliant with RoHS and REACH standards, it’s a reliable choice for everyday industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6907ZZ
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 58 mm
  • Flange Thickness 2.5 mm
  • Ball Qty 14
  • Ball Dia 5.953 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 2205 lbf
  • Static Radial Load 1582 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10800 rpm
  • Weight 92.2 g
  • Price（$） 30.98
Standard Flanged Ball Bearings SF6907ZZ dimension drawing
Download DWG Download PDF

Features

Performance Features of SF6907ZZ Bearing

SF6907ZZ Bearing is crafted with stainless steel rings and a chrome steel ball set, offering reliable radial load support.
Its dynamic radial load capacity of 2205 lbf ensures steady performance in various applications.

The shielded design of SF6907ZZ Bearing protects against contaminants, enhancing its durability.
With a maximum speed of 10,800 rpm, it delivers efficient operation without compromising on longevity.

SF6907ZZ Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for diverse environments.
The stainless steel cage maintains ball alignment, reducing friction and wear over time.

Application

Industrial Uses of SF6907ZZ Bearing
SF6907ZZ Bearing is commonly used in conveyor systems and small machinery, where its flanged design helps with easy mounting and alignment. The shielded seals keep contaminants out, making it reliable in dusty environments.

What Makes SF6907ZZ Bearing a Preferred Choice?
In automotive applications like electric motors, SF6907ZZ Bearing offers smooth rotation and handles radial loads effectively. Its stainless steel construction ensures longevity even in humid or corrosive conditions.

Perfect Fit for Automation: SF6907ZZ Bearing
SF6907ZZ Bearing works well in robotic arms and 3D printers, where precision and low friction are key. The compact size and flange make it ideal for space-constrained designs.

Medical vs Industrial: Where SF6907ZZ Bearing Excels
In medical devices like lab equipment, SF6907ZZ Bearing provides quiet and consistent performance. For industrial tools, its high-speed capability and durability stand out in demanding tasks.

Light-Duty vs Heavy-Duty: Best Uses for SF6907ZZ Bearing
SF6907ZZ Bearing suits light-duty applications like office printers, thanks to its smooth operation. In heavier settings, it handles moderate loads while maintaining efficiency.
