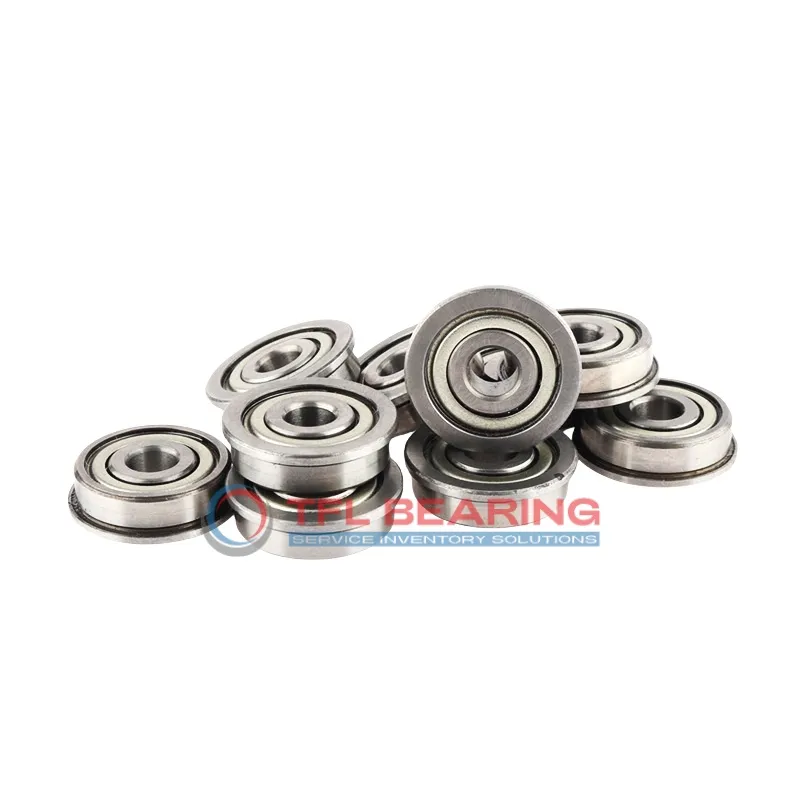

Standard Flanged Ball Bearings F6905ZZ

Standard Flanged Ball Bearings F6905ZZ

The F6905ZZ is a compact flanged ball bearing measuring 25mm by 45mm by 9mm, crafted from sturdy chrome steel for durability. It supports radial loads up to 1576 lbf and spins smoothly at speeds up to 16,000 RPM.

Its shielded design keeps dirt out while the stainless steel cage ensures reliable performance. The flange adds stability, making it easier to mount in tight spaces.

This bearing is ideal for small machinery or electric motors where space is limited. It operates well in temperatures from -30°C to 110°C and requires regular lubrication.

Weighing just 45.1g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a practical choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6905ZZ
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 45 mm
  • Flange Thickness 2 mm
  • Ball Qty 13
  • Ball Dia 4.762 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 1576 lbf
  • Static Radial Load 1023 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 45.1 g
  • Price（$） 5.25
Standard Flanged Ball Bearings F6905ZZ dimension drawing
Download DWG Download PDF

Features

Performance Features of F6905ZZ Bearing

F6905ZZ Bearing features a shielded design with stainless steel shields, protecting against dust and debris.
Its chrome steel rings and balls ensure durability and smooth operation under radial loads.

The dynamic radial load capacity of 1576 lbf makes F6905ZZ Bearing suitable for various applications.
With a maximum speed of 16,000 rpm, it offers reliable performance in high-speed scenarios.

F6905ZZ Bearing’s compact size of 25 mm×45 mm×9 mm allows for easy integration into tight spaces.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Operating within a temperature range of -30° to 110°C, F6905ZZ Bearing adapts to diverse environments.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Industrial Uses of F6905ZZ Bearing
F6905ZZ Bearing is commonly used in conveyor systems and small machinery, where its flanged design helps with easy mounting and alignment. The shielded seals protect against dust, making it suitable for environments with moderate contamination.

Where Is F6905ZZ Bearing Used?
You’ll often find F6905ZZ Bearing in electric motors and gearboxes, where its compact size and radial load capacity are ideal. The chrome steel construction ensures durability, even in high-speed applications up to 16,000 rpm.

Perfect Fit for Automation: F6905ZZ Bearing
F6905ZZ Bearing works well in robotic arms and small automation equipment, thanks to its precise ABEC-1 tolerance. The stainless steel cage adds reliability, especially in repetitive motion scenarios.

Automotive vs Industrial: Applications of F6905ZZ Bearing
In automotive applications, F6905ZZ Bearing supports components like alternators and small pumps, while in industrial settings, it’s favoured for its ease of installation. The metric sizing ensures compatibility across various equipment types.

Designed for Versatility: F6905ZZ Bearing
F6905ZZ Bearing fits neatly into household appliances like washing machines, where space is limited. Its shielded design keeps lubrication in place, reducing maintenance needs over time.
