Standard Flanged Ball Bearings F6803ZZ

Standard Flanged Ball Bearings F6803ZZ

The F6803ZZ is a compact flanged ball bearing with a 17mm bore and 26mm outer diameter, measuring just 5mm wide. Its shielded design keeps dirt out while allowing smooth rotation at speeds up to 24,000 RPM.

Made from chrome steel with stainless steel shields, it handles radial loads up to 501 lbf. The flange provides secure mounting, preventing slippage in tight spaces.

With a C0 clearance and ABEC-1 tolerance, it offers reliable performance for everyday applications. Ideal for small motors, fans, or appliances where space is limited.

Weighing only 8.3 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use across various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6803ZZ
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 28 mm
  • Flange Thickness 1.1 mm
  • Ball Qty 16
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 501 lbf
  • Static Radial Load 328 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 24000 rpm
  • Weight 8.30 g
  • Price（$） 3.79

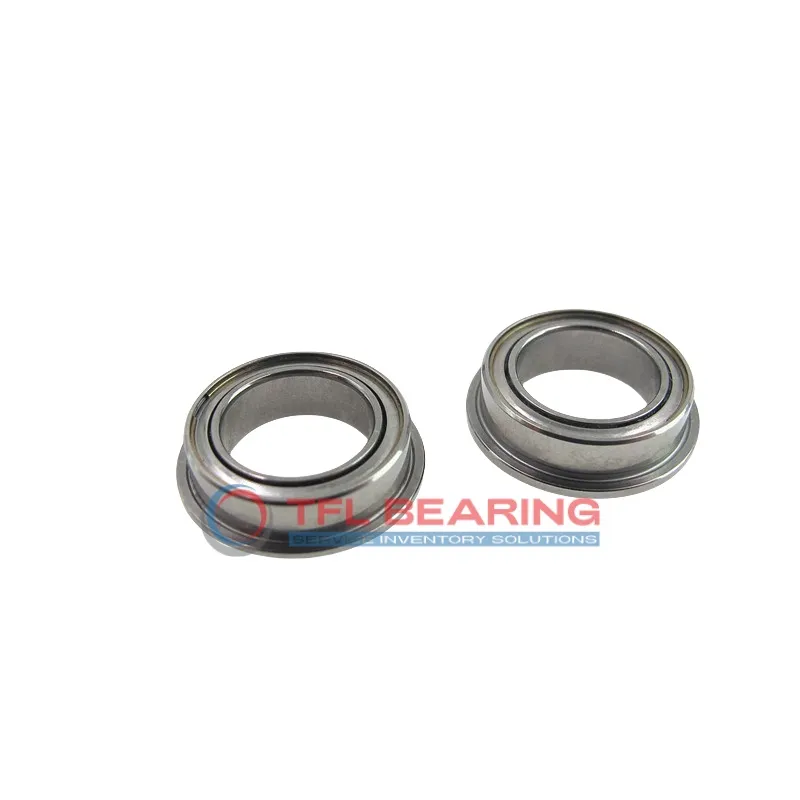

Standard Flanged Ball Bearings F6803ZZ dimension drawing
Download DWG Download PDF

Features

How Does F6803ZZ Bearing Reduce Friction?

F6803ZZ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants, maintaining performance in various environments.
With a dynamic radial load capacity of 501 lbf, it handles moderate loads efficiently.
Its ABEC-1 tolerance class ensures consistent precision for reliable performance.
