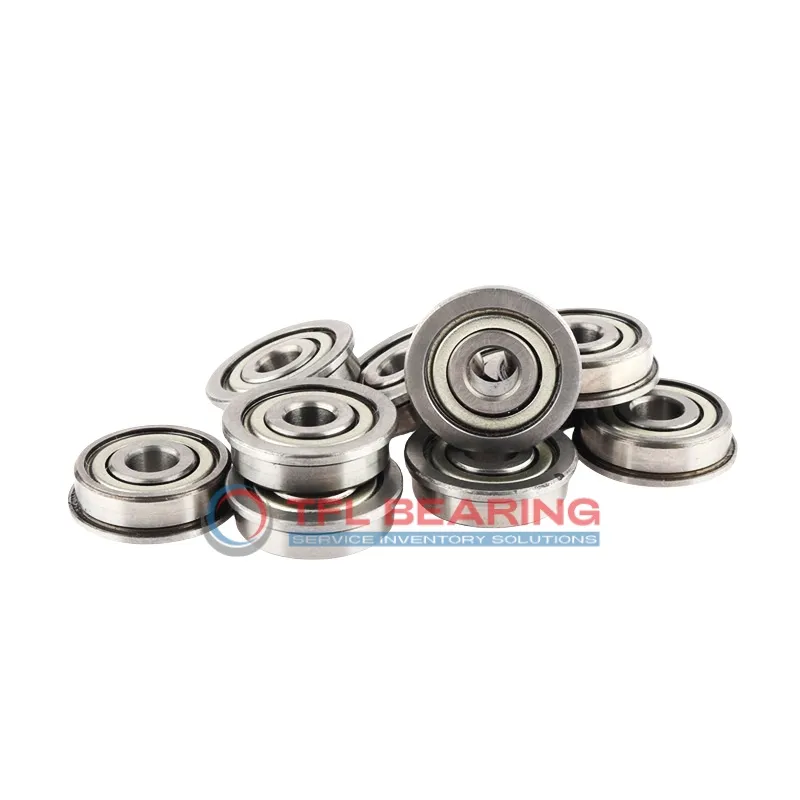

Standard Flanged Ball Bearings F63806ZZ

Standard Flanged Ball Bearings F63806ZZ

The F63806ZZ is a compact flanged ball bearing with a 30mm bore and 42mm outer diameter, shielded for added protection. Its chrome steel construction ensures durability, while the stainless steel cage enhances longevity.

This single-row bearing handles radial loads up to 1020 lbf and spins smoothly at speeds up to 15,000 RPM. The flange design (45mm diameter) helps keep it securely in place during operation.

With a C0 radial clearance and ABEC-1 tolerance, it offers reliable performance for everyday applications. The shielded design keeps contaminants out while allowing easy lubrication.

Ideal for small machinery, electric motors, or conveyor systems where space is limited. Weighing just 39.2g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F63806ZZ
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 45 mm
  • Flange Thickness 2 mm
  • Ball Qty 17
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 1020 lbf
  • Static Radial Load 765 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 39.2 g
  • Price（$） 7.8
Standard Flanged Ball Bearings F63806ZZ dimension drawing
Download DWG Download PDF

Features

How Does F63806ZZ Bearing Reduce Friction?

F63806ZZ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The stainless steel cage in F63806ZZ Bearing keeps the balls properly spaced, reducing wear.
With a dynamic radial load capacity of 1020 lbf, it handles moderate loads efficiently.

F63806ZZ Bearing operates at speeds up to 15,000 rpm, making it suitable for high-speed applications.
Its ABEC-1 tolerance ensures reliable precision in various mechanical systems.

Application

Common Applications of F63806ZZ Bearing
F63806ZZ Bearing is widely used in conveyor systems, where its flanged design helps maintain alignment under radial loads. The shielded seals keep contaminants out, extending service life in dusty environments.

In automotive applications, F63806ZZ Bearing fits well in electric window mechanisms and small gearboxes. Its compact size and metric dimensions make it suitable for European and Asian car models.

For home appliances like washing machines, F63806ZZ Bearing provides smooth rotation in drum assemblies. The chrome steel construction ensures durability even with frequent use.

In robotics, F63806ZZ Bearing supports lightweight arms and joints, thanks to its balanced load capacity. The stainless steel cage adds corrosion resistance for long-term reliability.

F63806ZZ Bearing also works well in office equipment such as printers, where low noise and consistent performance are key. Its ABEC-1 tolerance offers sufficient precision for everyday tasks.
