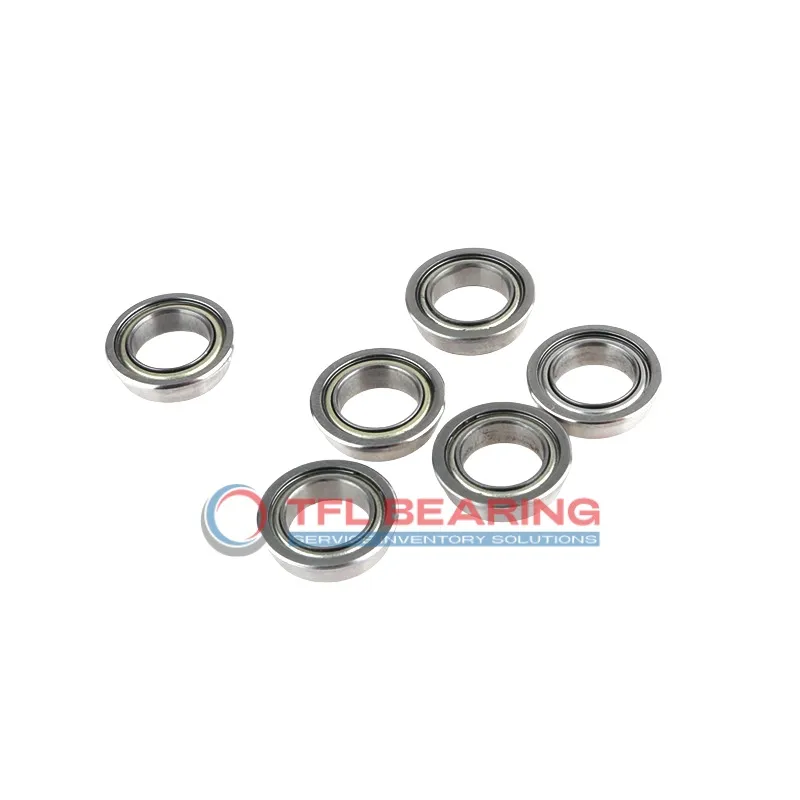

Standard Flanged Ball Bearings F63805ZZ

Standard Flanged Ball Bearings F63805ZZ

The F63805ZZ is a compact flanged ball bearing with a 25mm bore and 37mm outer diameter, featuring a 40mm flange for secure mounting. Made from chrome steel, it offers reliable radial load handling up to 967 lbf.

Its shielded design keeps contaminants out while allowing smooth rotation at speeds up to 18,000 RPM. The stainless steel cage ensures durability, and the ABEC-1 tolerance provides consistent performance.

With a width of just 10mm, it fits neatly in tight spaces. Ideal for small machinery, electric motors, or conveyor systems where space-saving and stability are key.

Weighing only 34.1g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 110°C. Regular lubrication is recommended for optimal longevity.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F63805ZZ
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 40 mm
  • Flange Thickness 2 mm
  • Ball Qty 15
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 967 lbf
  • Static Radial Load 659 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 34.1 g
  • Price（$） 5.25
Standard Flanged Ball Bearings F63805ZZ dimension drawing
Download DWG Download PDF

Features

How Does F63805ZZ Bearing Reduce Friction?

F63805ZZ Bearing features chrome steel rings and balls, which help minimise friction during operation.
The shielded design protects against contaminants, ensuring smooth performance in various conditions.

With a dynamic radial load capacity of 967 lbf, it handles moderate loads efficiently.
The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s life.

Its maximum speed of 18,000 rpm makes it suitable for high-speed applications.
The ABEC-1 tolerance class ensures consistent performance without excessive precision requirements.

Application

Practical Applications of F63805ZZ Bearing
F63805ZZ Bearing is commonly used in industrial equipment like conveyor systems and small gearboxes, where its shielded design helps keep out dust and debris. The compact size and flange make it easy to install in tight spaces.

In automotive applications, F63805ZZ Bearing works well in electric motors and cooling fans, providing smooth rotation under radial loads. Its chrome steel construction ensures durability even in high-temperature environments.

For automation projects, F63805ZZ Bearing is a reliable choice for robotic arms and 3D printers, where precision and low maintenance are key. The stainless steel cage adds extra protection against wear over time.

Around the home, you might find F63805ZZ Bearing in appliances like washing machines or power tools. Its balanced performance handles everyday vibrations without issues.

Medical devices like small pumps also benefit from F63805ZZ Bearing’s consistent operation. The ABEC-1 tolerance offers sufficient precision for many healthcare applications.
