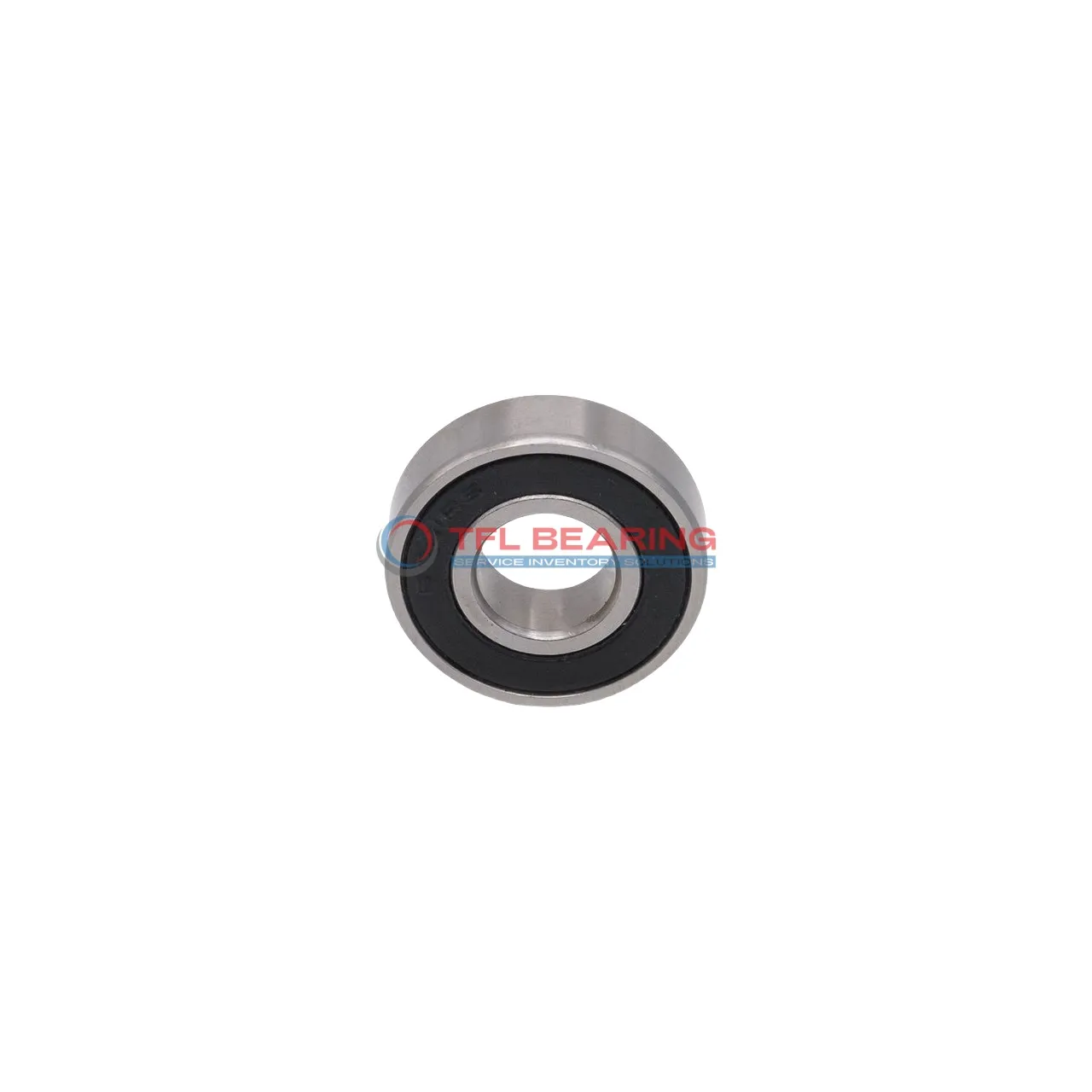

Stainless Steel Deep Groove Ball Bearings W 628-2RS1

Stainless Steel Deep Groove Ball Bearings W 628-2RS1

The W 628-2RS1 is a compact stainless steel deep groove ball bearing, measuring 8mm in bore, 24mm in outer diameter, and 8mm in width. It handles radial loads up to 555 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless steel construction resists corrosion, ideal for humid or wet environments.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial or marine applications. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing just 17 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for most uses. Perfect for small machinery, electric motors, or food processing equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 628-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 555 lbf
  • Static Radial Load 252 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.017 kg
Stainless Steel Deep Groove Ball Bearings W 628-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 628-2RS1 Bearing for Precision Tasks?

W 628-2RS1 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its sealed design keeps out contaminants, ensuring smooth operation in various environments.

The bearing handles dynamic radial loads up to 555 lbf, making it suitable for precise applications.
With a maximum speed of 20,000 rpm, it delivers reliable performance without compromising efficiency.

Grease lubrication reduces maintenance needs, while the stainless steel cage enhances durability.
Its compact size (8 mm×24 mm×8 mm) makes it ideal for space-constrained installations.

Application

Common Applications of W 628-2RS1 Bearing
W 628-2RS1 Bearing is a versatile choice for small electric motors, often found in household appliances like fans and blenders. Its sealed design keeps out dust and moisture, ensuring reliable performance in everyday use.

In automotive applications, W 628-2RS1 Bearing works well in components like window regulators and wiper motors. The stainless steel construction resists corrosion, making it suitable for exposed or wet conditions.

For light industrial equipment, W 628-2RS1 Bearing handles radial loads in conveyor rollers and small gearboxes. The compact size and grease lubrication allow it to run smoothly without frequent maintenance.

In medical devices, W 628-2RS1 Bearing’s quiet operation is ideal for precision instruments like dental tools. The P0 tolerance ensures consistent performance in sensitive applications.
