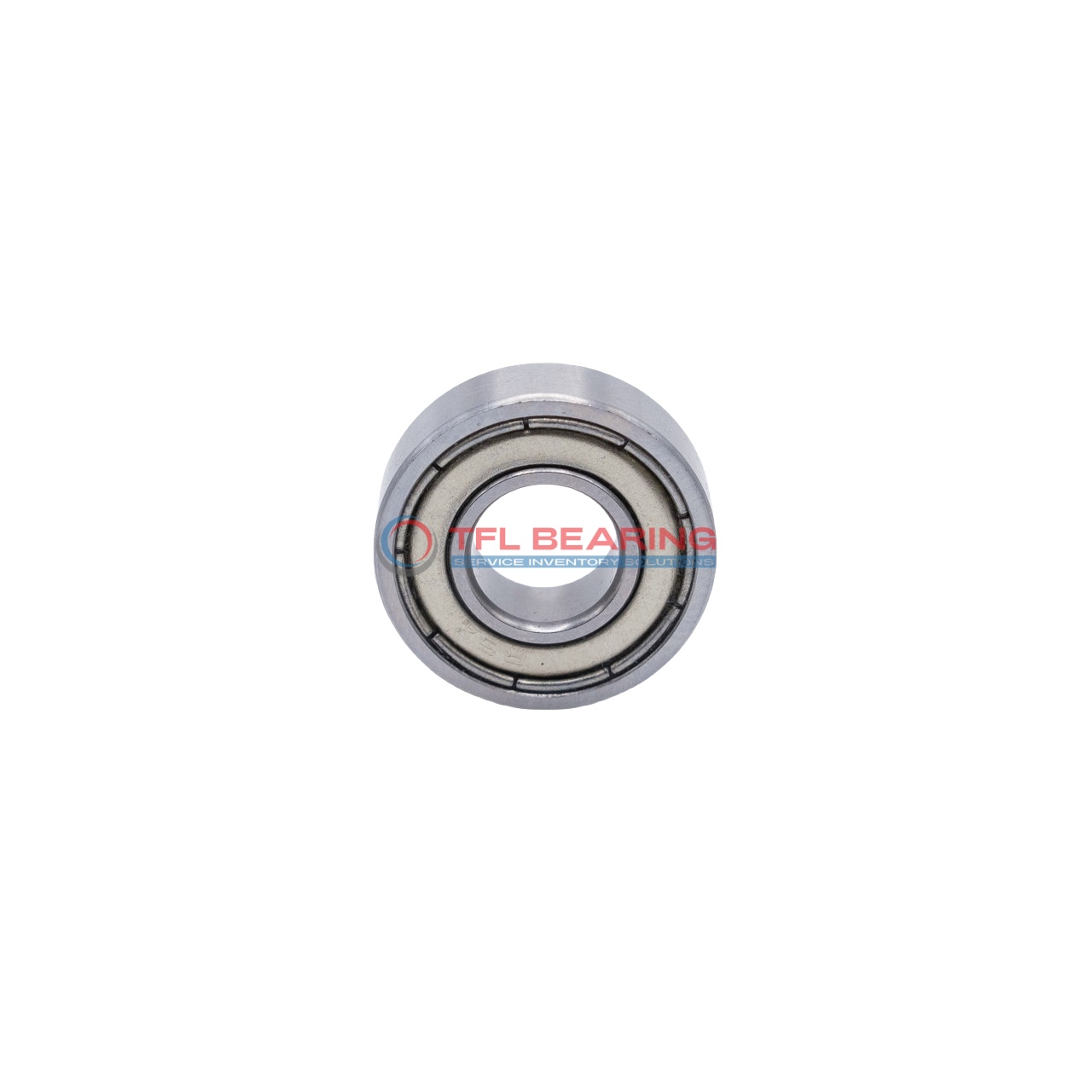

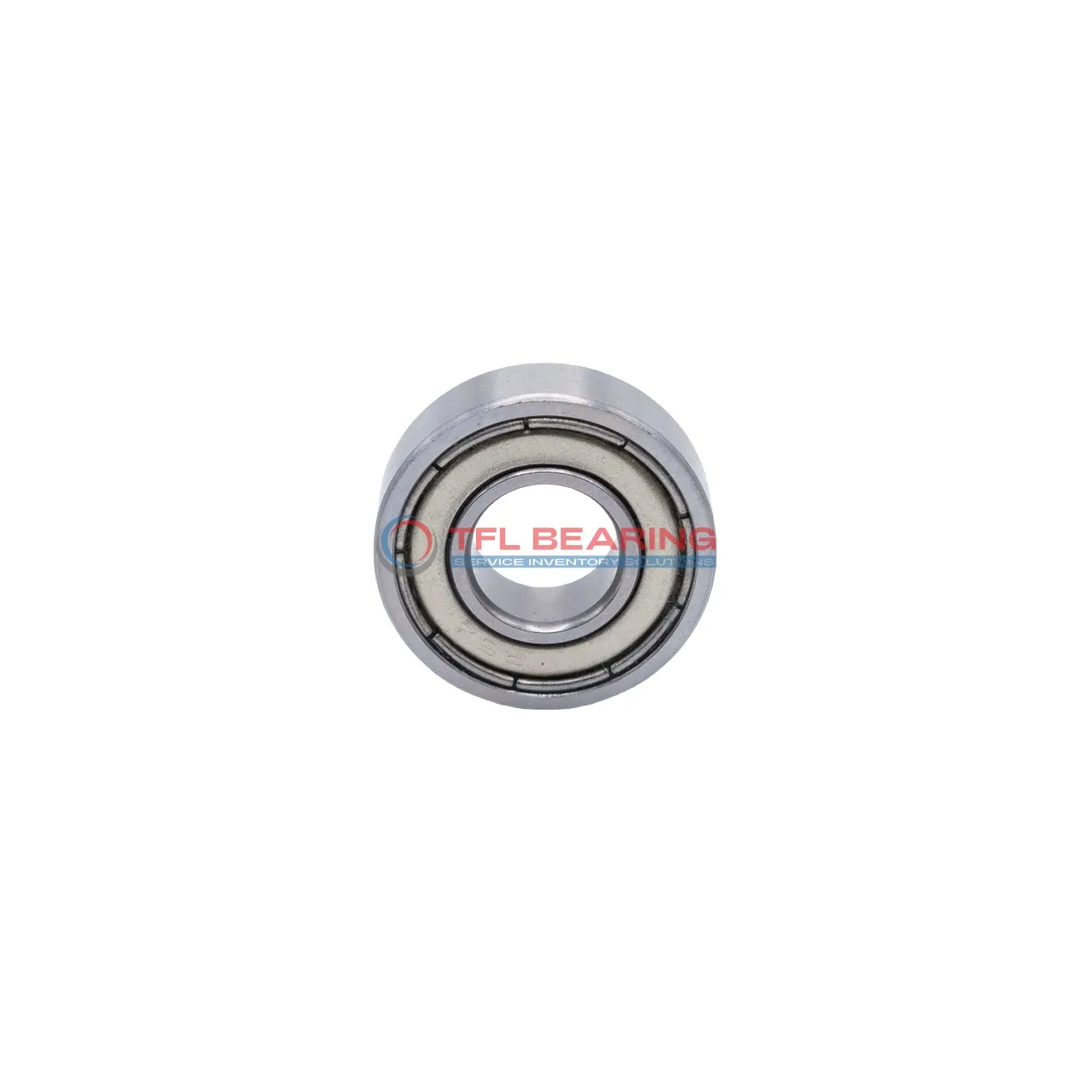

Stainless Steel Deep Groove Ball Bearings W 625-2Z

Stainless Steel Deep Groove Ball Bearings W 625-2Z

The W 625-2Z is a compact stainless steel deep groove ball bearing, measuring 5mm by 16mm by 5mm. Its shielded design keeps dirt out while retaining grease for smooth operation.

This single-row bearing handles radial loads up to 321 lbf and spins at speeds up to 50,000 RPM. Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C.

Its P0 tolerance and CN clearance ensure reliable performance in various applications. The bearing is interchangeable with SKF models, making replacements straightforward.

Ideal for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 4.9 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 625-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 321 lbf
  • Static Radial Load 142 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 50000 rpm
  • Weight 0.0049 kg
  • Price（$） 1.94
Stainless Steel Deep Groove Ball Bearings W 625-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 625-2Z Bearing for Precision Tasks?

W 625-2Z Bearing features stainless steel construction, offering excellent corrosion resistance for long-lasting performance.
Its shielded design protects against contaminants while maintaining smooth operation at speeds up to 50,000 rpm.

The compact size of 5 mm×16 mm×5 mm makes W 625-2Z Bearing ideal for applications where space is limited.
With a dynamic radial load capacity of 321 lbf, it handles moderate loads reliably.

W 625-2Z Bearing’s grease lubrication ensures consistent performance across a temperature range of -30° to 120 °C.
Its P0 tolerance class guarantees precision, making it suitable for high-accuracy tasks.

Application

Common Applications of W 625-2Z Bearing
W 625-2Z Bearing is widely used in small electric motors, such as those found in household appliances and cooling fans. Its stainless steel construction ensures corrosion resistance, making it suitable for humid environments.

In medical devices, W 625-2Z Bearing provides smooth rotation for precision instruments like dental drills and lab equipment. The shielded design helps keep contaminants out, maintaining hygiene standards.

For automation systems, W 625-2Z Bearing is a reliable choice for compact robotic arms and conveyor belt guides. Its metric sizing allows for easy integration into various European and Asian machinery designs.

In consumer electronics, W 625-2Z Bearing supports the moving parts of printers and small gadgets. The grease lubrication ensures quiet operation, ideal for noise-sensitive environments.
